ADG465BRTZ-REEL7 - Analog Devices

Description: IC CHANNEL PROTECTOR SGL SOT23-6

Download ADG465BRTZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

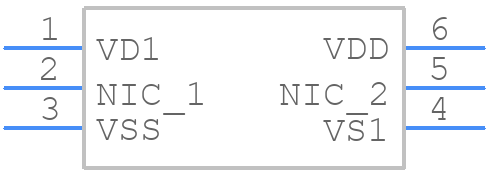

ADG465BRTZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG465BRTZ-REEL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - RJ-6
click to zoom
3D Models
ADG465BRTZ-REEL7 - Analog Devices - 3D model - SOT23 (6-Pin) - RJ-6
click to zoom

ADG465BRTZ-REEL7 Details

  • Manufacturer Part Number:

    ADG465BRTZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, RT-6, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Configuration:

    SERIES, 3 ELEMENTS

  • Drain Current-Max (ID):

    0.02 A

  • Drain-source On Resistance-Max:

    115 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    3

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

ADG465BRTZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG465BRTZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its recommended operating temperature range.
  • To prevent electrostatic discharge (ESD) damage, it's recommended to handle the ADG465BRTZ-REEL7 in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and use ESD-protected packaging and storage materials.
  • The ADG465BRTZ-REEL7 is not specifically designed or tested for radiation-hardened applications. If radiation hardness is required, it's recommended to consult with Analog Devices Inc. or use a radiation-hardened equivalent device.
  • The recommended soldering profile for the ADG465BRTZ-REEL7 involves a peak temperature of 260°C, a dwell time above 217°C of 20-40 seconds, and a total process time of 60-90 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
