ADG467BRSZ - Analog Devices

Description: ADG467BRSZ, Channel Protector, 20-Pin SSOP

Download ADG467BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

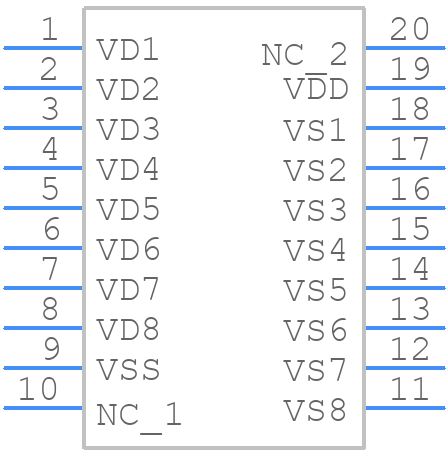

ADG467BRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG467BRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADG467BRSZ - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADG467BRSZ Details

  • Manufacturer Part Number:

    ADG467BRSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Drain Current-Max (ID):

    0.02 A

  • Drain-source On Resistance-Max:

    95 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

ADG467BRSZ Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the analog input pins is VDD + 0.3V, but it's recommended to keep it within the supply rails to ensure proper operation.
  • To ensure the switch is properly turned on or off, make sure to apply a logic high or low signal to the control pin (IN) that is within the recommended voltage range (VDD or GND). Also, ensure that the control signal is stable and not oscillating.
  • The maximum current that the switch can handle is 200mA, but it's recommended to keep it below 100mA for reliable operation and to minimize power dissipation.
  • To minimize power consumption when the switch is in the off-state, ensure that the control pin (IN) is at a logic low level (GND) and that the analog input pins are not floating. This will help reduce leakage currents and minimize power consumption.
  • For optimal performance, it's recommended to follow a star-grounding layout, keep the analog and digital traces separate, and use a solid ground plane to minimize noise and EMI. Also, keep the switch as close as possible to the load to minimize parasitic inductance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG467BRSZ Overview

Use the download button to access the ADG467BRSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG46, or try a keyword search, such as Small Signal Field-Effect Transistors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
