Technical Content
Part Image

ADG467BRZ - Analog Devices

Description: ADG467BRZ, Channel Protector, 18-Pin SOIC W

Download ADG467BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

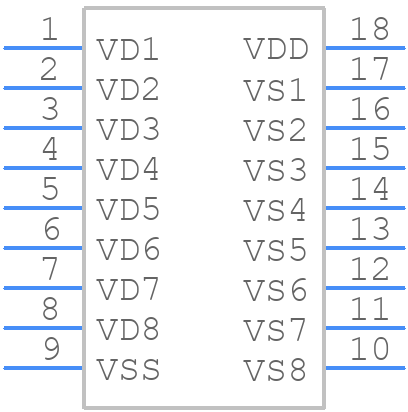

ADG467BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG467BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-18 (SOIC)
click to zoom
3D Models
ADG467BRZ - Analog Devices - 3D model - Small Outline Packages - RW-18 (SOIC)
click to zoom

ADG467BRZ Details

  • Manufacturer Part Number:

    ADG467BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT

  • Package Description:

    SOIC-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    RW-18

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Drain Current-Max (ID):

    0.02 A

  • Drain-source On Resistance-Max:

    95 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    18

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

ADG467BRZ Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the analog input pins is VDD + 0.3V, but it's recommended to keep it within the supply rails to ensure proper operation.
  • To ensure the switch is properly turned on or off, make sure to apply a logic high or low signal to the control input (IN) that is within the recommended voltage range (VIL and VIH) specified in the datasheet.
  • To minimize signal degradation and ensure proper operation, it's recommended to follow a star-grounding layout, keep the analog and digital grounds separate, and use short and direct traces for the analog signals.
  • The ADG467BRZ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and handling to prevent damage to the device.
  • The maximum current that can be sourced or sunk by the ADG467BRZ is ±30mA, but it's recommended to keep the current within the recommended range to ensure proper operation and prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG467BRZ Overview

Use the download button to access the ADG467BRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG46, or try a keyword search, such as Small Signal Field-Effect Transistors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
