ADG5209BCPZ-RL7 - Analog Devices

Description: Multiplexer Switch ICs Latchup Proof, +/-20V, +36V diff 4-1 MUX

Download ADG5209BCPZ-RL7 Model

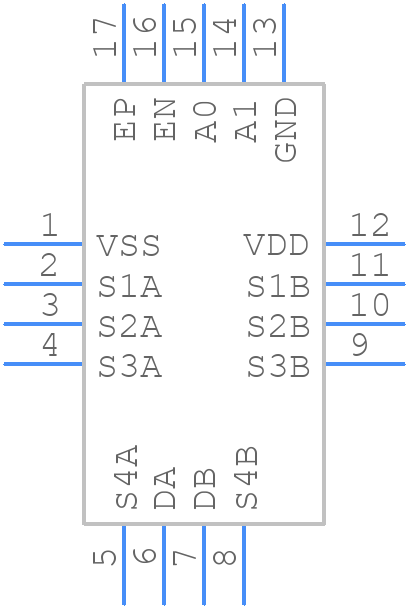

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADG5209BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-17
click to zoom
3D Models
ADG5209BCPZ-RL7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-16-17
click to zoom

ADG5209BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADG5209BCPZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:37.683

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    90 dB

  • On-state Resistance Match-Nom:

    3.5 Ω

  • On-state Resistance-Max (Ron):

    700 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.055 A

  • Supply Current-Max (Isup):

    0.13 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    180 ns

  • Switch-on Time-Max:

    275 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADG5209BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5209BCPZ-RL7 involves keeping the signal traces short and direct, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and crosstalk.
  • To ensure proper powering and decoupling of the ADG5209BCPZ-RL7, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 100 nF and 10 μF) close to the device's power pins, and use a 10 kΩ to 100 kΩ resistor in series with the power supply to prevent voltage spikes.
  • The ADG5209BCPZ-RL7 is designed to operate up to 250 MHz, but the actual operating frequency may be limited by the specific application, PCB layout, and signal integrity. It's recommended to consult the datasheet and application notes for more information.
  • To handle thermal management for the ADG5209BCPZ-RL7, ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures or high power levels. The device's junction temperature should not exceed 150°C.
  • The ADG5209BCPZ-RL7 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and handle the device by the body or pins, not the leads.
