ADG5212BCPZ-RL7 - Analog Devices

Description: Latch-up proof 3 pF off source capacitance 5 pF off drain capacitance 0.07 pC charge injection Low leakage: 0.2 nA maximum at 85ºC ±9 V to ±22 V dual-supply operation 9 V to 40 V single-supply operation 48 V supply maximum ratings Fully specified at ±15 V, ±20 V, +12 V, and +36 V VSS to VDD analog signal range

Download ADG5212BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

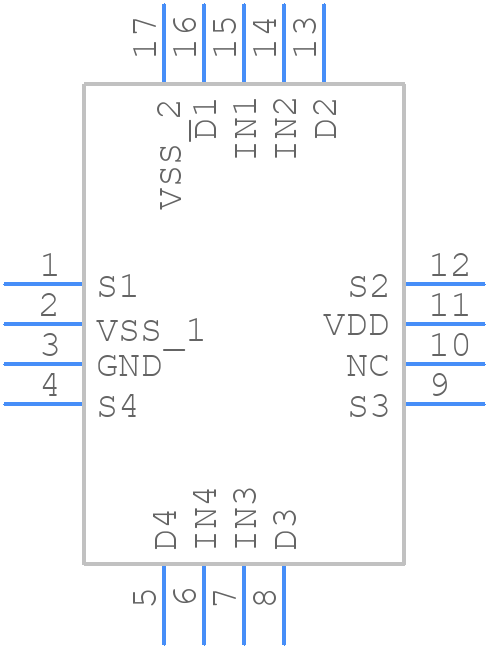

ADG5212BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5212BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-17)
click to zoom
3D Models
ADG5212BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-17)
click to zoom

ADG5212BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADG5212BCPZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:37.685

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    80 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    200 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.034 A

  • Supply Current-Max (Isup):

    0.13 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    215 ns

  • Switch-on Time-Max:

    280 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADG5212BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5212BCPZ-RL7 should include a solid ground plane, decoupling capacitors near the device, and a thermal pad connected to a heat sink or a large copper area to dissipate heat. Additionally, keep sensitive analog traces away from digital traces and ensure good shielding to minimize EMI.
  • The ADG5212BCPZ-RL7 requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized. Also, ensure that the power supply can provide the required current during switching.
  • The maximum switching frequency of the ADG5212BCPZ-RL7 is 100 kHz. Higher switching frequencies can increase power consumption, so it's essential to balance switching frequency with power consumption requirements. A higher switching frequency can also increase electromagnetic interference (EMI).
  • To protect the ADG5212BCPZ-RL7 from overvoltage and overcurrent conditions, use voltage regulators with overvoltage protection, add TVS diodes or zener diodes for overvoltage protection, and consider using a current-limiting resistor or a fuse to prevent overcurrent conditions.
  • The recommended operating temperature range for the ADG5212BCPZ-RL7 is -40°C to 125°C. Operating the device outside this range can affect its reliability and lifespan. High temperatures can increase the device's power consumption and reduce its lifespan, while low temperatures can increase its power consumption and affect its switching performance.
