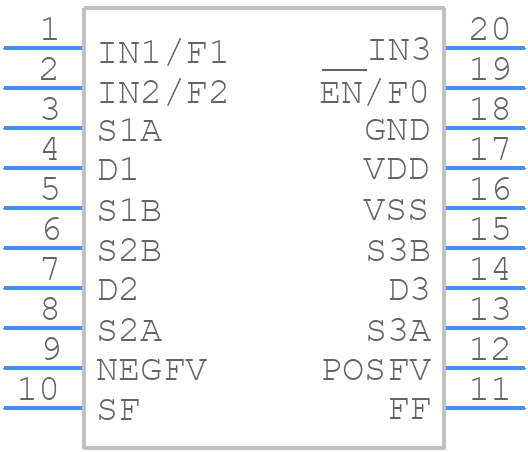

ADG5243FBRUZ - Analog Devices

ADG5243FBRUZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADG5243FBRUZ to minimize parasitic inductance and capacitance?
  A good PCB layout for the ADG5243FBRUZ involves placing the device close to the signal sources, using short and wide traces, and avoiding vias and right-angle bends. Additionally, a solid ground plane and a decoupling capacitor (e.g., 100 nF) between VDD and GND can help reduce parasitic inductance and capacitance.
• How do I ensure the ADG5243FBRUZ is properly powered up and initialized?
  To ensure proper power-up and initialization, apply power to VDD and GND simultaneously, and ensure that the voltage on VDD rises monotonically to its final value. Also, make sure that the control pins (e.g., Sx, Dx) are in a valid state before applying power to prevent unintended switching.
• What is the maximum allowable voltage on the switch pins (Sx, Dx) when the device is powered down?
  When the ADG5243FBRUZ is powered down, the maximum allowable voltage on the switch pins (Sx, Dx) is 5.5 V to prevent damage to the device. It's recommended to limit the voltage to VDD + 0.3 V or less to ensure safe operation.
• Can I use the ADG5243FBRUZ as a multiplexer or demultiplexer?
  Yes, the ADG5243FBRUZ can be used as a multiplexer or demultiplexer. By connecting multiple sources to the Sx pins and multiple loads to the Dx pins, you can use the device to route signals from one source to multiple loads or from multiple sources to one load.
• How do I determine the correct value of the pull-up resistors for the control pins (Sx, Dx)?
  The correct value of the pull-up resistors for the control pins (Sx, Dx) depends on the specific application and the logic family used. As a general guideline, use a pull-up resistor value between 1 kΩ and 10 kΩ to ensure proper logic levels and to prevent excessive current consumption.
