ADG5248FBRUZ-RL7 - Analog Devices

Description: ► User defined secondary supplies set overvoltage level ► Overvoltage protection up to −55 V and +55 V ► Power-off protection up to −55 V and +55 V ► Overvoltage detection on source pins ► Minimum secondary supply level: 4.5 V single-supply ► Interrupt flags indicate fault status ► Low charge injection (QINJ): 0.8 pC ► Low drain/source on capacitance ► ADG5248F: 19 pF ► ADG5249F: 14 pF ► Latch-up immune under any circumstance ► Known state without digital inputs present ► VSS to VDD analog signa

Download ADG5248FBRUZ-RL7 Model

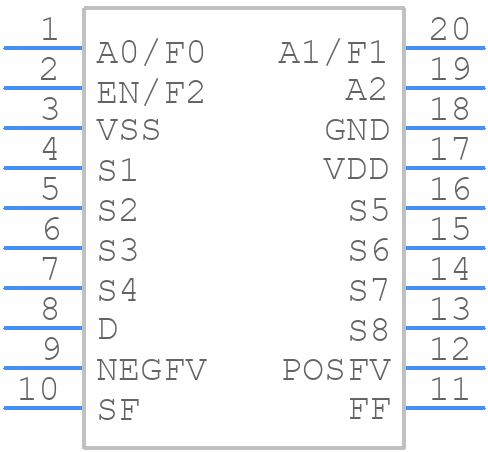

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADG5248FBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
ADG5248FBRUZ-RL7 - Analog Devices  - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

ADG5248FBRUZ-RL7 Details

  • Manufacturer Part Number:

    ADG5248FBRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    2.5 Ω

  • On-state Resistance-Max (Ron):

    270 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.027 A

  • Supply Current-Max (Isup):

    1.15 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    160 ns

  • Switch-on Time-Max:

    315 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG5248FBRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the ADG5248FBRUZ-RL7 is to keep the signal traces as short as possible, use a solid ground plane, and avoid crossing signal traces over each other. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and crosstalk.
  • To ensure proper powering and decoupling of the ADG5248FBRUZ-RL7, use a low-ESR capacitor (e.g., 0.1 μF) between the VDD and GND pins, and a 10 μF capacitor between the VDD and GND pins for bulk decoupling. Additionally, use a 1 kΩ resistor in series with the VDD pin to prevent voltage overshoot during power-up.
  • The ADG5248FBRUZ-RL7 is designed to operate up to 100 MHz, but the actual operating frequency may be limited by the specific application and PCB layout. It's recommended to consult the datasheet and perform simulations to determine the maximum operating frequency for a specific design.
  • The ADG5248FBRUZ-RL7 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and handle the device by the body or pins, rather than the leads. Additionally, use ESD-protected packaging and storage to prevent damage during shipping and storage.
  • The ADG5248FBRUZ-RL7 has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or thermal pad on the exposed pad of the device, and ensure good airflow around the device. Additionally, use thermal simulation tools to determine the maximum power dissipation and thermal resistance for a specific design.
