ADG5249FBRUZ - Analog Devices

Description: ► User defined secondary supplies set overvoltage level ► Overvoltage protection up to −55 V and +55 V ► Power-off protection up to −55 V and +55 V ► Overvoltage detection on source pins ► Minimum secondary supply level: 4.5 V single-supply ► Interrupt flags indicate fault status ► Low charge injection (QINJ): 0.8 pC ► Low drain/source on capacitance ► ADG5248F: 19 pF ► ADG5249F: 14 pF ► Latch-up immune under any circumstance ► Known state without digital inputs present ► VSS to VDD analog signa

Download ADG5249FBRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

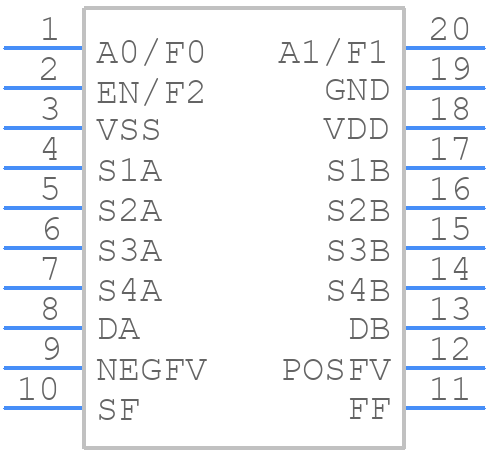

ADG5249FBRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5249FBRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RU-20)
click to zoom
3D Models
ADG5249FBRUZ - Analog Devices - 3D model - Small Outline Packages - (RU-20)
click to zoom

ADG5249FBRUZ Details

  • Manufacturer Part Number:

    ADG5249FBRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    2.5 Ω

  • On-state Resistance-Max (Ron):

    270 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    160 ns

  • Switch-on Time-Max:

    315 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm
