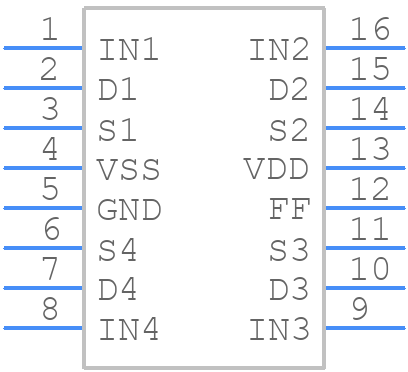

ADG5413BFBRUZ-RL7 - Analog Devices

ADG5413BFBRUZ-RL7 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and thermal management for optimal performance?
  For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to place the device near a thermal pad or heat sink to dissipate heat. Additionally, ensure that the PCB layout minimizes parasitic inductance and capacitance.
• How do I ensure reliable operation over the full temperature range?
  To ensure reliable operation over the full temperature range, it is essential to follow proper PCB design and layout guidelines, and to ensure that the device is operated within its specified voltage and current ratings. Additionally, consider using thermal management techniques such as heat sinks or thermal pads to maintain a stable junction temperature.
• What are the recommended power-up and power-down sequences for the ADG5413BFBRUZ-RL7?
  The recommended power-up sequence is to apply VDD first, followed by VSS, and then the logic inputs. For power-down, the sequence should be reversed. It is also recommended to ensure that the power supplies are stable and well-regulated to prevent damage to the device.
• How do I handle ESD protection for the ADG5413BFBRUZ-RL7?
  The ADG5413BFBRUZ-RL7 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage.
• What are the implications of operating the ADG5413BFBRUZ-RL7 at frequencies above 100 kHz?
  Operating the ADG5413BFBRUZ-RL7 at frequencies above 100 kHz may result in increased power consumption, reduced signal integrity, and potential oscillations. It is recommended to follow the datasheet guidelines for frequency operation and to ensure that the device is properly decoupled and filtered to minimize these effects.
