ADG5421BRMZ-RL7 - Analog Devices

Description: Analog Switch ICs LatchupProof +12V +36V 1xSPDT

Download ADG5421BRMZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

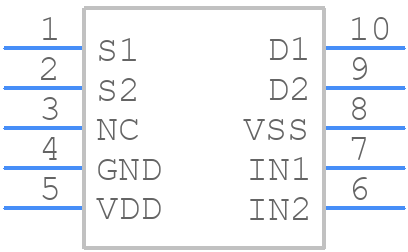

ADG5421BRMZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5421BRMZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
ADG5421BRMZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

ADG5421BRMZ-RL7 Details

  • Manufacturer Part Number:

    ADG5421BRMZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    15 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-on Time-Max:

    370 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADG5421BRMZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5421BRMZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The recommended power-up sequence for the ADG5421BRMZ-RL7 is to power up the VDD supply first, followed by the VSS supply. During power-down, the sequence should be reversed. It's also recommended to add a power-on reset circuit to ensure that the device is properly reset during power-up.
  • To troubleshoot issues with the ADG5421BRMZ-RL7, start by verifying the power supply voltages and ensuring that the device is properly configured. Use an oscilloscope to monitor the device's inputs and outputs, and check for any signs of electrical overstress or damage. Additionally, consult the device's datasheet and application notes for guidance on troubleshooting common issues.
  • When using the ADG5421BRMZ-RL7 in a system with multiple switching regulators, it's essential to ensure that the device's switching frequency does not interfere with the regulators' operation. Additionally, it's recommended to use a common ground plane and to decouple the power supplies to minimize noise and ensure reliable operation.
