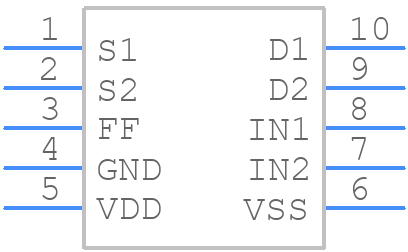

ADG5421FBCPZ-RL7 - Analog Devices

ADG5421FBCPZ-RL7 Details

• Manufacturer Part Number:

  ADG5421FBCPZ-RL7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LFCSP-10

• Pin Count:

  10

• Manufacturer Package Code:

  CP-10-16

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2020-10-20

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog IC - Other Type:

  SPST

• JESD-30 Code:

  R-XBCS-N10

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -22 V

• Neg Supply Voltage-Min (Vsup):

  -5 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NC

• Number of Channels:

  1

• Number of Functions:

  2

• Number of Terminals:

  10

• Off-state Isolation-Nom:

  85 dB

• On-state Resistance Match-Nom:

  0.2 Ω

• On-state Resistance-Max (Ron):

  20.5 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  CSP

• Package Equivalence Code:

  SOLCC10,.08,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP SCALE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Signal Current-Max:

  0.278 A

• Supply Current-Max (Isup):

  0.205 mA

• Supply Voltage-Max (Vsup):

  22 V

• Supply Voltage-Min (Vsup):

  5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  0.17 ns

• Switch-on Time-Max:

  0.0141 ns

• Switching:

  BREAK-BEFORE-MAKE

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2 mm
