ADG621BRMZ - Analog Devices

Description: ADG621BRMZ, Analogue Switch Dual SPST, 3, 5V, 10-Pin, MSOP

Download ADG621BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

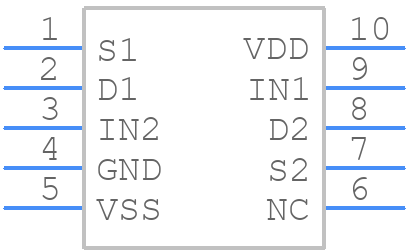

Symbol
ADG621BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG621BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)-2
click to zoom
3D Models
ADG621BRMZ - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)-2
click to zoom

ADG621BRMZ Details

  • Manufacturer Part Number:

    ADG621BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CAN ALSO OPERATE WITH 2.7V TO 5.5V SINGLE SUPPLY

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -2.7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    0.25 Ω

  • On-state Resistance-Max (Ron):

    5.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.05 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    70 ns

  • Switch-on Time-Max:

    120 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADG621BRMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG621BRMZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, placing the device close to the analog signal sources and using shielding or guard rings around the analog signals can help reduce EMI and noise.
  • To ensure proper powering and decoupling of the ADG621BRMZ, use a low-ESR capacitor (e.g., 0.1 μF) between the VDD and GND pins, and a larger capacitor (e.g., 10 μF) between the VDD and GND pins for bulk decoupling. Also, ensure that the power supply is clean and well-regulated, and that the device is operated within its recommended operating voltage range.
  • The ADG621BRMZ is a low-frequency switch, and its maximum frequency of operation is typically limited to a few hundred kHz. However, the exact maximum frequency depends on the specific application, signal amplitude, and other factors. It's recommended to consult with Analog Devices' application engineers or perform thorough testing to determine the maximum frequency for a specific use case.
  • The EN pin is an active-low enable input that allows the user to control the switch state. To use the EN pin, connect it to a logic signal that is low when the switch is desired to be on, and high when the switch is desired to be off. Ensure that the EN pin is properly terminated and driven by a logic signal that meets the device's input requirements.
  • The ADG621BRMZ is a surface-mount device, and its thermal performance is critical for reliable operation. Ensure good thermal conduction by using a thermally conductive PCB material, and consider using thermal vias or thermal pads to improve heat dissipation. Also, avoid overheating the device by keeping it within its recommended operating temperature range.
