ADG6412BCPZ-REEL7 - Analog Devices

Description: 0.5 ?? RON, ??20 V, +36 V, Quad SPST Switch

Download ADG6412BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

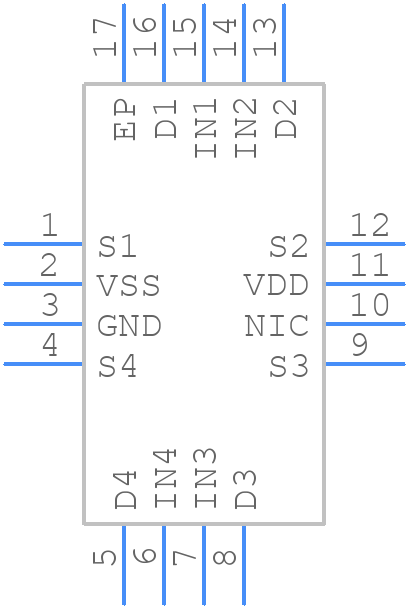

ADG6412BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG6412BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-17)
click to zoom
3D Models
ADG6412BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-17)
click to zoom

ADG6412BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG6412BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-01-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -20 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    77 dB

  • On-state Resistance Match-Nom:

    0.003 Ω

  • On-state Resistance-Max (Ron):

    1 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.33 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    204 ns

  • Switch-on Time-Max:

    529 ns

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADG6412BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG6412BCPZ-REEL7 should minimize signal trace lengths, use a solid ground plane, and keep analog and digital signals separate. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
  • The recommended power-up sequence for the ADG6412BCPZ-REEL7 is to power up the VDD supply first, followed by the VSS supply. This ensures that the internal circuitry is properly initialized and minimizes the risk of latch-up or other power-up related issues.
  • To troubleshoot issues with the ADG6412BCPZ-REEL7, start by verifying the power supply voltages, checking for proper signal connections, and ensuring that the device is operated within its recommended specifications. Use oscilloscopes or logic analyzers to monitor signal waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on specific troubleshooting techniques.
  • The ADG6412BCPZ-REEL7 is not specifically designed or qualified for radiation-hardened or high-reliability applications. However, Analog Devices Inc. offers other products that are designed and tested for such applications. Consult with Analog Devices Inc. or a qualified radiation effects engineer to determine the suitability of the ADG6412BCPZ-REEL7 or alternative products for your specific application.
