ADG658TRUZ-EP-RL7 - Analog Devices

Description: Multiplexer Switch ICs 8:1 MUX, +/-5V Supply Rate to +125 I.C.

Download ADG658TRUZ-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

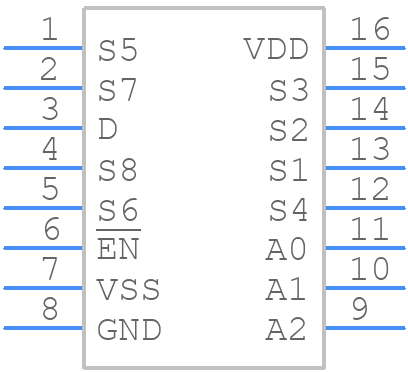

ADG658TRUZ-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG658TRUZ-EP-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 4.4 MM_2024-1
click to zoom
3D Models
ADG658TRUZ-EP-RL7 - Analog Devices - 3D model - Small Outline Packages - TSSOP 4.4 MM_2024-1
click to zoom

ADG658TRUZ-EP-RL7 Details

  • Manufacturer Part Number:

    ADG658TRUZ-EP-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 2 TO 12 V SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -2 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NC

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    90 dB

  • On-state Resistance Match-Nom:

    1.3 Ω

  • On-state Resistance-Max (Ron):

    75 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    55 ns

  • Switch-on Time-Max:

    165 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG658TRUZ-EP-RL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the ADG658 datasheet, which includes guidelines for component placement, routing, and grounding to minimize EMI and noise. Additionally, it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding where necessary.
  • To ensure the ADG658TRUZ-EP-RL7 operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified power dissipation limits.
  • The recommended power-up sequence for the ADG658TRUZ-EP-RL7 is to apply the power supply voltage (VDD) before applying the analog input signals. This ensures that the internal circuitry is properly initialized and configured before the device starts switching.
  • To troubleshoot issues with the ADG658TRUZ-EP-RL7, start by reviewing the device's datasheet and application notes to ensure that the device is being used within its specified operating conditions. Next, use a logic analyzer or oscilloscope to monitor the device's control inputs and output signals. Check for any signs of noise, ringing, or oscillation that could be causing the issue. If the problem persists, consider consulting with Analog Devices' technical support or seeking assistance from a qualified engineer.
  • The ADG658TRUZ-EP-RL7 is a radiation-hardened device, making it suitable for use in high-reliability and safety-critical applications, such as aerospace, defense, and industrial control systems. However, it's essential to follow Analog Devices' guidelines for using the device in these applications, including adhering to specific testing and qualification procedures.
