ADG658YRQZ-REEL7 - Analog Devices

Description: +3V/+5V/ 5V CMOS 8-Channel Analog Multiplexer

Download ADG658YRQZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

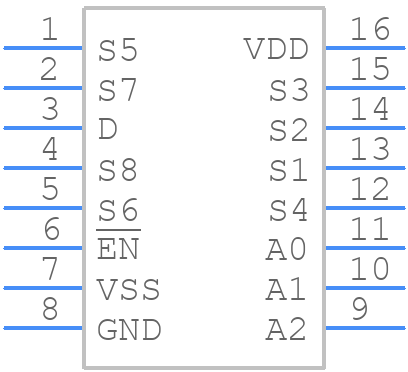

Symbol
ADG658YRQZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG658YRQZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP 150 MIL
click to zoom
3D Models
ADG658YRQZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - QSOP 150 MIL
click to zoom

ADG658YRQZ-REEL7 Details

  • Manufacturer Part Number:

    ADG658YRQZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATE WITH 2 V TO 12 V

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9022 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -2 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NC

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    90 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    400 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7526 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    110 ns

  • Switch-on Time-Max:

    490 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9116 mm

ADG658YRQZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG658YRQZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The ADG658YRQZ has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD-protective packaging.
  • To troubleshoot issues with the ADG658YRQZ, start by reviewing the datasheet and application notes to ensure proper configuration and usage. Then, use debugging tools such as oscilloscopes and logic analyzers to identify the source of the issue. It's also recommended to consult with Analog Devices' technical support team for further assistance.
  • For radiation-hardened or high-reliability applications, it's essential to consult with Analog Devices' technical support team to discuss the specific requirements and ensure the ADG658YRQZ meets the necessary standards. Additionally, it's recommended to follow proper design and testing procedures to ensure the device's reliability and performance in these environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG658YRQZ-REEL7 Overview

Use the download button to access the ADG658YRQZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG65, or try a keyword search, such as Multiplexers or Switches

About Analog Devices
