ADG659YRQZ - Analog Devices

Description: Analog Devices ADG659YRQZ, Multiplexer Dual 4 x 2, 5 V, 16-Pin QSOP

Download ADG659YRQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

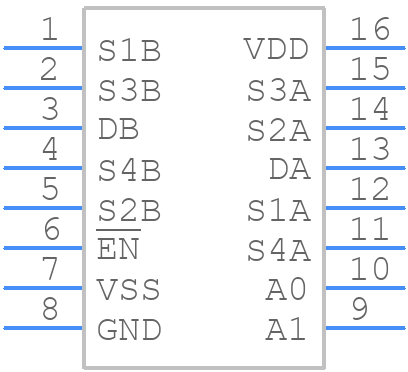

ADG659YRQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG659YRQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RQ-16)_16
click to zoom
3D Models
ADG659YRQZ - Analog Devices - 3D model - Small Outline Packages - (RQ-16)_16
click to zoom

ADG659YRQZ Details

  • Manufacturer Part Number:

    ADG659YRQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATE WITH 2 V TO 12 V

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9022 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -2 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NC

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    90 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    400 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7526 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    110 ns

  • Switch-on Time-Max:

    490 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9116 mm

ADG659YRQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG659YRQZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VDD pin and to keep the signal traces as short as possible.
  • The ADG659YRQZ requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirement is to power up the VDD pin before the logic inputs. It's also recommended to add a 10uF capacitor between the VDD pin and ground to filter out noise.
  • The ADG659YRQZ can operate up to 100MHz. However, the device's performance may degrade at higher frequencies due to increased power consumption and reduced signal-to-noise ratio. It's recommended to use a lower frequency of operation to ensure optimal performance and minimize power consumption.
  • The ADG659YRQZ has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. In high-temperature environments, it's recommended to use a heat sink or a thermal interface material to dissipate heat away from the device.
  • The ADG659YRQZ has built-in ESD protection diodes on all pins. However, it's still recommended to use external ESD protection devices, such as TVS diodes, to protect the device from electrostatic discharge. Additionally, it's recommended to use a latch-up prevention circuit, such as a resistor and capacitor in series, to prevent latch-up conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG659YRQZ Overview

Use the download button to access the ADG659YRQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG65, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
