ADG714BCPZ-REEL7 - Analog Devices

Description: Analog Switch ICs Low Voltage 3-wire Serially Controlled O

Download ADG714BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

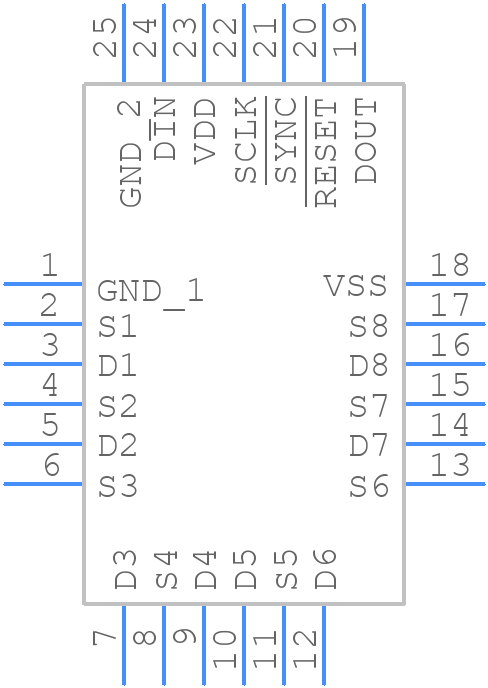

ADG714BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG714BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-10)_2022
click to zoom
3D Models
ADG714BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-10)_2022
click to zoom

ADG714BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG714BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-06-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES WITH 2.7V TO 5.5V SINGLE SUPPLY

  • Analog IC - Other Type:

    SPST

  • Input Voltage-Max:

    2.5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -2.75 V

  • Neg Supply Voltage-Min (Vsup):

    -2.25 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.4 Ω

  • On-state Resistance-Max (Ron):

    4.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    25 mA

  • Supply Voltage-Max (Vsup):

    2.75 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    18 ns

  • Switch-on Time-Max:

    32 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADG714BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG714BCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The ADG714BCPZ-REEL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's recommended to use an ESD wrist strap or mat, and to handle the device by the body rather than the pins. Additionally, it's a good idea to use ESD-protected equipment and to follow a controlled ESD environment.
  • To troubleshoot issues with the ADG714BCPZ-REEL7, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check the output signals and look for any signs of distortion or noise. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Analog Devices' support team if necessary.
  • The ADG714BCPZ-REEL7 is not a radiation-hardened device, and it's not recommended for use in radiation-intensive environments. If radiation hardening is required, it's recommended to use a radiation-hardened equivalent device or to consult with Analog Devices' support team for guidance on using the ADG714BCPZ-REEL7 in a radiation-hardened application.
