ADG719BRTZ-REEL - Analog Devices

Description: Analog Switch ICs LOW VOLTAGE SINGEL SPDT

Download ADG719BRTZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

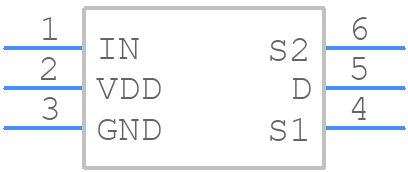

Symbol
ADG719BRTZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG719BRTZ-REEL - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 6-Lead Small Outline Transistor Package [SOT-23]
click to zoom
3D Models
ADG719BRTZ-REEL - Analog Devices - 3D model - SOT23 (6-Pin) - 6-Lead Small Outline Transistor Package [SOT-23]
click to zoom

ADG719BRTZ-REEL Details

  • Manufacturer Part Number:

    ADG719BRTZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Off-state Isolation-Nom:

    67 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    12 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    8 ns

  • Switch-on Time-Max:

    15 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

ADG719BRTZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG719BRTZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • The ADG719BRTZ-REEL requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the analog power supply is stable.
  • The recommended clock frequency for the ADG719BRTZ-REEL is between 1 MHz and 50 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. A clock signal with excessive jitter or noise can affect the device's performance and accuracy.
  • The ADG719BRTZ-REEL's digital output data is a 16-bit or 18-bit parallel data output. It's recommended to use a FIFO or a buffer to handle the data output. The data should be processed and filtered according to the specific application requirements, but a simple moving average filter or a low-pass filter can be used to reduce noise and improve accuracy.
  • The ADG719BRTZ-REEL has a maximum junction temperature of 125°C. To ensure proper thermal management, it's recommended to use a heat sink or a thermal pad on the device, and to keep the ambient temperature below 70°C. A good thermal design should also consider the PCB layout, airflow, and thermal interface materials.
