ADG723ACPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG723ACPZ-REEL7 - ANALOGUE SW, 2CH , SPST, LFCSP-8

Download ADG723ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

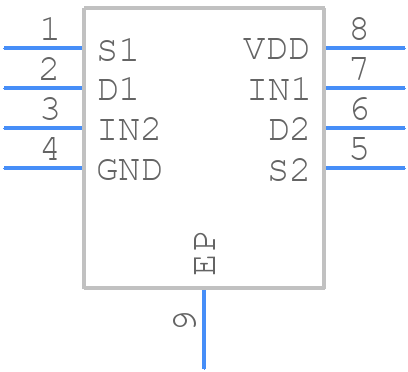

ADG723ACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG723ACPZ-REEL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - . 8-Lead Lead Frame Chip Scale Package [LFCSP_WD] 3 mm × 2 mm Body, Very Very Thin, Dual Lead (CP-8-4)
click to zoom
3D Models
ADG723ACPZ-REEL7 - Analog Devices - 3D model - Small Outline No-lead - . 8-Lead Lead Frame Chip Scale Package [LFCSP_WD] 3 mm × 2 mm Body, Very Very Thin, Dual Lead (CP-8-4)
click to zoom

ADG723ACPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG723ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 2 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-1

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPEARTES AT 5 V SUPPLY

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.3 Ω

  • On-state Resistance-Max (Ron):

    10 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    11 ns

  • Switch-on Time-Max:

    24 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm
