ADG787BRMZ-REEL - Analog Devices

Description: Analog Switch Dual SPDT 10-Pin MSOP T/R

Download ADG787BRMZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

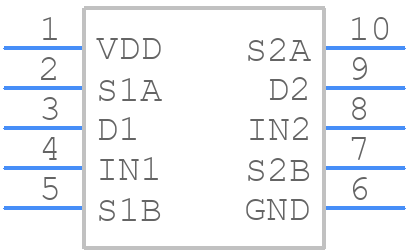

Symbol
ADG787BRMZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG787BRMZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)_2021
click to zoom
3D Models
ADG787BRMZ-REEL - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)_2021
click to zoom

ADG787BRMZ-REEL Details

  • Manufacturer Part Number:

    ADG787BRMZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    63 dB

  • On-state Resistance Match-Nom:

    0.07 Ω

  • On-state Resistance-Max (Ron):

    5.75 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    6 ns

  • Switch-on Time-Max:

    30 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADG787BRMZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG787BRMZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The ADG787BRMZ-REEL has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using an ESD wrist strap or mat.
  • To troubleshoot issues with the ADG787BRMZ-REEL, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals using an oscilloscope, and verify that the device is properly configured and initialized. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support.
  • For radiation-hardened or high-reliability applications, it's essential to follow the guidelines outlined in the datasheet and application notes. This includes using radiation-hardened components, following proper design and layout practices, and performing thorough testing and validation. Additionally, consult with Analog Devices' technical support and radiation experts to ensure the device meets the specific requirements of the application.
