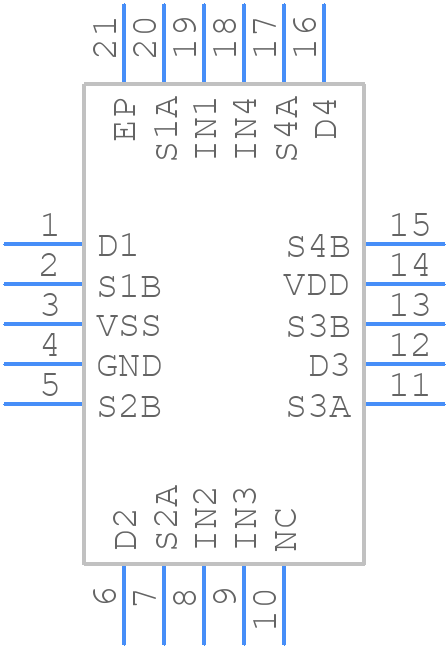

ADG788BCPZ-REEL - Analog Devices

ADG788BCPZ-REEL Details

• Manufacturer Part Number:

  ADG788BCPZ-REEL

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  ROHS COMPLIANT, CSP-20

• Pin Count:

  20

• Manufacturer Package Code:

  CP-20-6

• Country Of Origin:

  South Korea

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  CAN ALSO OPERATE AT 5V NOMINAL

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  S-CQCC-N20

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage-Max (Vsup):

  -2.75 V

• Neg Supply Voltage-Min (Vsup):

  -2.25 V

• Neg Supply Voltage-Nom (Vsup):

  -2.5 V

• Number of Channels:

  1

• Number of Functions:

  4

• Number of Terminals:

  20

• Off-state Isolation-Nom:

  72 dB

• On-state Resistance Match-Nom:

  0.1 Ω

• On-state Resistance-Max (Ron):

  4.5 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC20,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.9 mm

• Signal Current-Max:

  0.03 A

• Supply Current-Max (Isup):

  0.001 mA

• Supply Voltage-Max (Vsup):

  2.75 V

• Supply Voltage-Min (Vsup):

  2.25 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  16 ns

• Switch-on Time-Max:

  35 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  4 mm
