ADG812YRUZ-REEL7 - Analog Devices

Description: Analog Switch ICs Low Voltage Quad SPST Switch IC.

Download ADG812YRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

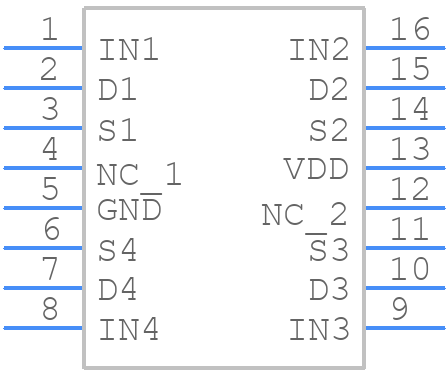

Symbol
ADG812YRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG812YRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
ADG812YRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

ADG812YRUZ-REEL7 Details

  • Manufacturer Part Number:

    ADG812YRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    67 dB

  • On-state Resistance Match-Nom:

    0.04 Ω

  • On-state Resistance-Max (Ron):

    0.72 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.3 A

  • Supply Current-Max (Isup):

    0.004 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    8 ns

  • Switch-on Time-Max:

    30 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG812YRUZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and land pattern in their application notes and evaluation boards. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce thermal resistance.
  • The ADG812YRUZ-REEL7 has built-in ESD protection, but it's still crucial to follow proper handling and assembly procedures to prevent damage. Use anti-static wrist straps, mats, and packaging materials, and avoid touching the device's pins or exposed pads.
  • The ADG812YRUZ-REEL7 has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using thermal vias, thermal pads, and heat sinks. Follow Analog Devices' thermal management guidelines and consider using thermal interface materials to minimize thermal resistance.
  • Use Analog Devices' evaluation boards and development tools to simplify debugging. Common pitfalls include incorrect pin connections, inadequate power supply decoupling, and insufficient thermal management. Consult the datasheet, application notes, and Analog Devices' support resources for troubleshooting guidance.
  • The ADG812YRUZ-REEL7 is designed to meet high-reliability standards. Analog Devices provides reliability data and accelerated life testing results in their documentation. The device is expected to perform well under stress and aging, but it's essential to follow proper design, assembly, and operating guidelines to ensure optimal reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG812YRUZ-REEL7 Overview

Use the download button to access the ADG812YRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG81, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
