ADG918BCPZ-REEL7 - Analog Devices

Description: RF Switch 0MHz to 4GHz 36dB 8-Pin LFCSP Analog Devices ADG918BCPZ-REEL7, RF Switch 4GHz Single SPDT 36dB Isolation CMOS/LVTTL 1.65 ??? 2.75 V 8-Pin LFCSP

Download ADG918BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

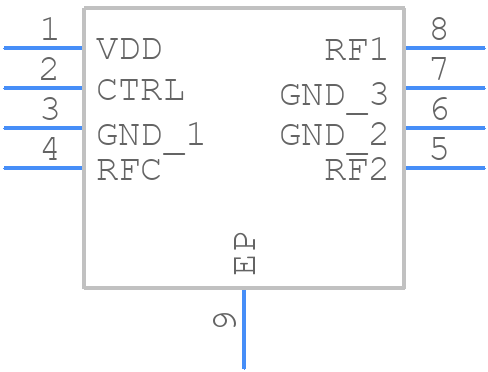

ADG918BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG918BCPZ-REEL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP]+
click to zoom
3D Models
ADG918BCPZ-REEL7 - Analog Devices - 3D model - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP]+
click to zoom

ADG918BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG918BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, CP-8-2, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • 1dB Compression Point:

    17 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    17.99 dBm

  • Insertion Loss-Max:

    1.25 dB

  • Isolation-Min:

    36 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.0066 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.1,20

  • Port Termination:

    ABSORP/REFLECTIVE

  • Power Supplies:

    1.65/2.75 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.09

ADG918BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG918BCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The ADG918BCPZ-REEL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's recommended to use an ESD wrist strap or mat, and to handle the device by the body rather than the pins. Additionally, it's a good idea to use ESD-protected workstations and to ground all equipment to a common point.
  • To troubleshoot issues with the ADG918BCPZ-REEL7, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the device is properly configured and that the input signals are within the recommended range. Use an oscilloscope to check the output signals and look for any signs of distortion or noise. If the issue persists, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The ADG918BCPZ-REEL7 is not a radiation-hardened device, and it's not recommended for use in radiation-intensive environments. If radiation hardening is required, it's recommended to use a radiation-hardened equivalent device or to consult with Analog Devices Inc. for custom solutions.
