ADG918BRMZ - Analog Devices

Description: ADG918BRMZ, RF Switch 2000MHz Single SPDT 34dB Isolation CMOS/LVTTL 1.8, 2.5V 8-Pin MSOP

Download ADG918BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

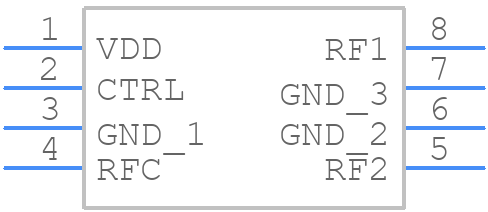

Symbol
ADG918BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG918BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)
click to zoom
3D Models
ADG918BRMZ - Analog Devices - 3D model - Small Outline Packages - RM-8 (MSOP)
click to zoom

ADG918BRMZ Details

  • Manufacturer Part Number:

    ADG918BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, RM-8, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • 1dB Compression Point:

    17 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    17.99 dBm

  • Insertion Loss-Max:

    1.25 dB

  • Isolation-Min:

    34 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.0066 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    ABSORP/REFLECTIVE

  • Power Supplies:

    1.65/2.75 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.09

ADG918BRMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG918BRMZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the ADG918BRMZ, use a high-quality, low-ESR capacitor (e.g., 10uF) between the VCC and GND pins, and add a 100nF capacitor between the VCC and AVCC pins. Additionally, use a 1uF capacitor between the AVCC and GND pins.
  • The ADG918BRMZ can operate up to 100 kHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 50 kHz to ensure optimal performance.
  • To minimize EMI and RFI with the ADG918BRMZ, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, use a low-pass filter on the output lines to reduce high-frequency noise.
  • The ADG918BRMZ has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or a thermal pad on the device, and ensure good airflow around the device. It's also recommended to keep the device away from other heat sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG918BRMZ Overview

Use the download button to access the ADG918BRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG91, or try a keyword search, such as RF/Microwave Switches
