ADG919BRMZ-REEL7 - Analog Devices

Description: RF Switch ICs 1GHz 2:1 MUX (Reflective) I.C. Wideband switch: −3 dB at 4 GHz Absorptive/reflective switches High off isolation (43 dB at 1 GHz) Low insertion loss (0.8 dB at 1 GHz) Single 1.65 V to 2.75 V power supply CMOS/LVTTL control logic 8-lead MSOP and tiny 3 mm × 3 mm LFCSP Low power consumption (<1 µA)

Download ADG919BRMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

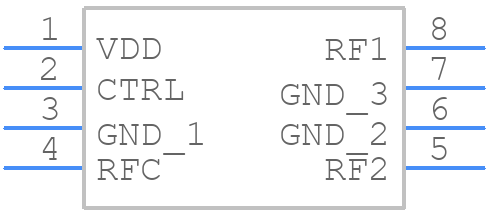

ADG919BRMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG919BRMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
ADG919BRMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

ADG919BRMZ-REEL7 Details

  • Manufacturer Part Number:

    ADG919BRMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, RM-8, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • 1dB Compression Point:

    17 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    17.99 dBm

  • Insertion Loss-Max:

    1.25 dB

  • Isolation-Min:

    34 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.0066 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    1.65/2.75 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.09

ADG919BRMZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as minimizing trace lengths, using a solid ground plane, and avoiding vias under the device. Additionally, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADG919BRMZ-REEL7 requires a single 1.8V to 5.5V power supply. Ensure the power supply is clean and well-regulated, and decouple the power pins with a 10nF capacitor. Also, consider adding a 100nF capacitor in parallel to filter out high-frequency noise.
  • The ADG919BRMZ-REEL7 can operate up to 100MHz, but the actual operating frequency depends on the specific application and the quality of the PCB layout. It's essential to evaluate the device's performance in your specific use case.
  • The ADG919BRMZ-REEL7 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the PCB is properly grounded.
  • The ADG919BRMZ-REEL7 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG919BRMZ-REEL7 Overview

Use the download button to access the ADG919BRMZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG91, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
