ADHV4702-1BCPZ - Analog Devices

Description: Precision Amplifiers 200V Precision Amplifier

Download ADHV4702-1BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

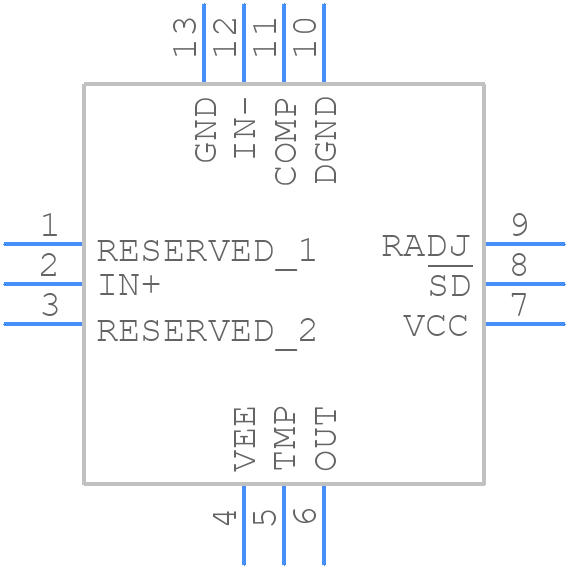

ADHV4702-1BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADHV4702-1BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADHV4702-1BCPZ-1
click to zoom
3D Models
ADHV4702-1BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - ADHV4702-1BCPZ-1
click to zoom

ADHV4702-1BCPZ Details

  • Manufacturer Part Number:

    ADHV4702-1BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CP-12-8

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-11-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.000002 µA

  • Bias Current-Max (IIB) @25C:

    0.02 µA

  • Common-mode Reject Ratio-Min:

    140 dB

  • Common-mode Reject Ratio-Nom:

    160 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    S-XQCC-N12

  • Length:

    7 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -112.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    74 V/us

  • Supply Current-Max:

    3.3 mA

  • Supply Voltage Limit-Max:

    112.5 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    QUAD

  • Wideband:

    YES

  • Width:

    7 mm

ADHV4702-1BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADHV4702-1BCPZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a low-ESR output capacitor, and keep the output capacitance within the recommended range. Also, avoid using long output traces and minimize the distance between the device and the output capacitor.
  • The maximum SOA for the ADHV4702-1BCPZ is limited by the device's thermal and electrical constraints. The device can operate safely within the recommended operating conditions, but exceeding these conditions can reduce the device's lifetime or cause permanent damage.
  • To troubleshoot oscillations or instability issues, check the PCB layout, decoupling, and compensation network. Ensure that the output capacitor is within the recommended range and that the device is not overheating. Also, verify that the input and output traces are not too long and are properly terminated.
  • To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, minimize the device's power dissipation by optimizing the design and reducing the output current.
