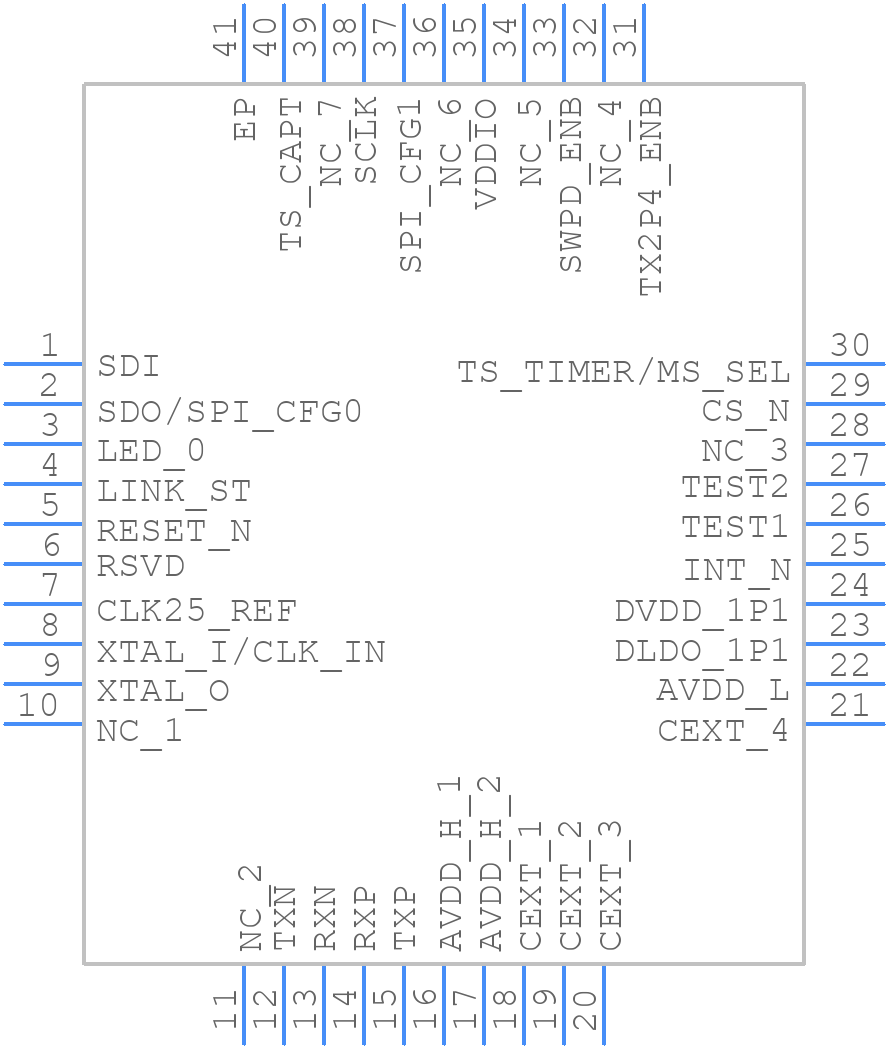

ADIN1110CCPZ - Analog Devices

ADIN1110CCPZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ADIN1110CCPZ?
  A good PCB layout for the ADIN1110CCPZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated analog ground plane is recommended.
• How do I ensure reliable communication between the ADIN1110CCPZ and the host processor?
  To ensure reliable communication, use a reliable SPI interface with a clock frequency of up to 10 MHz, and ensure that the slave select (SS) pin is properly controlled. Also, use a pull-up resistor on the MISO line and a pull-down resistor on the MOSI line to prevent floating inputs.
• What is the maximum cable length supported by the ADIN1110CCPZ for industrial Ethernet applications?
  The ADIN1110CCPZ supports cable lengths of up to 100 meters for industrial Ethernet applications, but this can be affected by factors such as cable quality, noise, and EMI. It's recommended to use high-quality cables and follow proper installation and termination practices.
• How do I implement redundancy and fault tolerance in my design using the ADIN1110CCPZ?
  To implement redundancy and fault tolerance, consider using multiple ADIN1110CCPZ devices in a redundant configuration, with each device connected to a separate Ethernet cable. You can also use a redundant power supply and implement error detection and correction mechanisms in your software.
• What are the thermal management considerations for the ADIN1110CCPZ?
  The ADIN1110CCPZ has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device temperature below 85°C by using a heat sink, thermal vias, and proper airflow. Also, avoid exposing the device to high temperatures during soldering and rework.
