ADIN2299BBCZ - Analog Devices

Description: Ethernet ICs RapID Platform Generation 2 Module

Download ADIN2299BBCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADIN2299BBCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

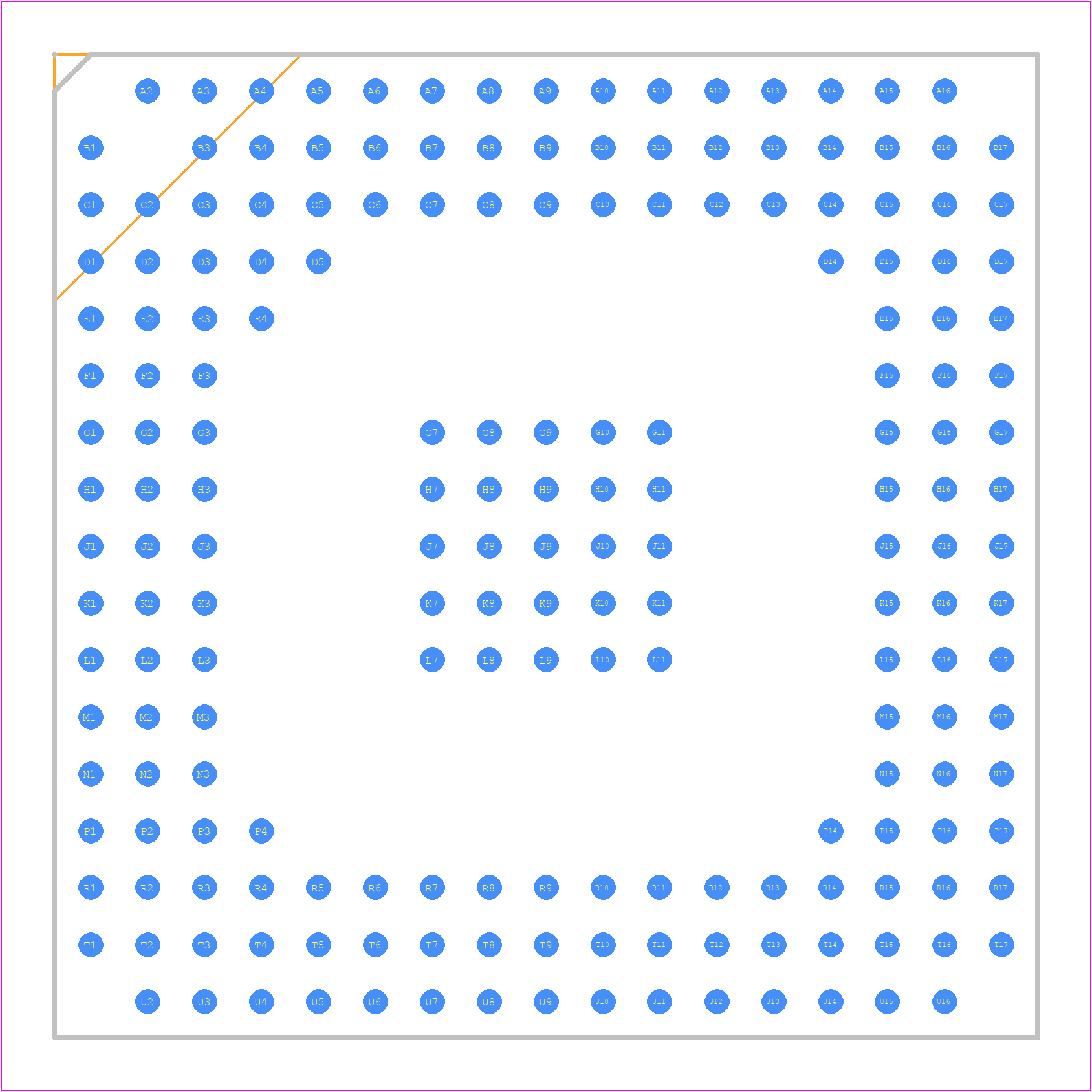

ADIN2299BBCZ - Analog Devices PCB footprint - BGA - BGA - BC-194-1
click to zoom
3D Models
ADIN2299BBCZ - Analog Devices - 3D model - BGA - BC-194-1
click to zoom

ADIN2299BBCZ Details

  • Manufacturer Part Number:

    ADIN2299BBCZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-194

  • Pin Count:

    194

  • Manufacturer Package Code:

    BC-194

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PBGA-B194

  • Length:

    38 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    194

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA194,17X17,87

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    3.56 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    2.2 mm

  • Terminal Position:

    BOTTOM

  • Width:

    38 mm

ADIN2299BBCZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADIN2299BBCZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the antenna. Additionally, it's recommended to use a common mode filter and a shielded enclosure to reduce EMI and RFI.
  • The ADIN2299BBCZ requires calibration to ensure accurate measurements. This can be done by following the calibration procedure outlined in the datasheet, which involves applying a known input signal and adjusting the device's internal registers to achieve the desired output. It's also recommended to perform periodic recalibration to maintain accuracy over time.
  • The ADIN2299BBCZ is rated for operation over the industrial temperature range of -40°C to +85°C. However, it's recommended to derate the device's performance at extreme temperatures, and to ensure proper thermal management to prevent overheating.
  • The ADIN2299BBCZ is not designed for use in safety-critical applications, such as those requiring IEC 61508 or ISO 26262 certification. However, it can be used in applications where functional safety is not a requirement, such as in industrial automation or IoT devices.
  • Troubleshooting issues with the ADIN2299BBCZ typically involves checking the device's power supply, clock signal, and digital interface. It's also recommended to review the device's internal registers and configuration settings to ensure they are correct. Additionally, Analog Devices provides a range of support resources, including application notes and technical support forums, to help engineers troubleshoot and resolve issues.
