ADIS16505-2BMLZ - Analog Devices

Description: Precision, Miniature MEMS IMU

Download ADIS16505-2BMLZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

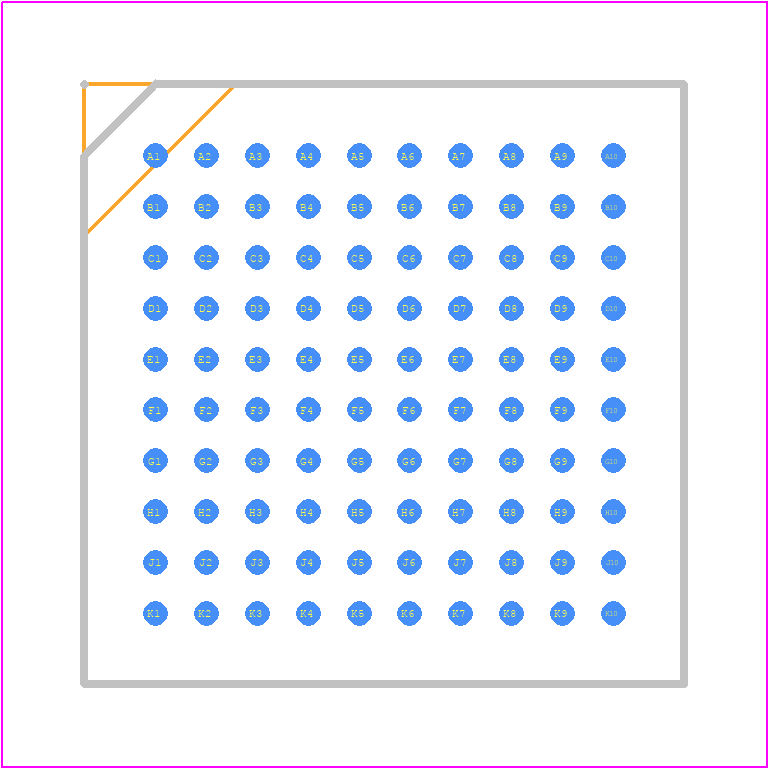

ADIS16505-2BMLZ - Analog Devices PCB footprint - BGA - BGA - 100-Ball Ball Grid Array Module [BGA] (ML-100-1)
click to zoom
3D Models
ADIS16505-2BMLZ - Analog Devices  - 3D model - BGA - 100-Ball Ball Grid Array Module [BGA] (ML-100-1)
click to zoom

ADIS16505-2BMLZ Details

  • Manufacturer Part Number:

    ADIS16505-2BMLZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    100

  • Manufacturer Package Code:

    ML-100-1

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-10-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B100

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA100,10X10,50

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    6.077 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

ADIS16505-2BMLZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VIO, and then the clock signal. This ensures proper initialization of the device.
  • The SPI interface can be configured by setting the CS pin low, sending the command byte, and then sending or receiving data bytes. The SPI clock frequency should be between 100 kHz and 2 MHz.
  • The internal temperature sensor is used for internal compensation and calibration. The temperature data can be accessed through the TEMP_OUT register (Address 0x1F).
  • Calibration involves performing a self-test, followed by a gyro bias calibration, and then a accelerometer bias calibration. Refer to the datasheet for the specific calibration procedure.
  • The maximum allowable vibration amplitude is 10,000 g's. Exceeding this limit may cause damage to the device.
