- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADJ56012
- Part Number ADJ56012
- Manufacturer Panasonic
- Pin Count 8
- Part Category Relay or Contactor
- Package Category Other

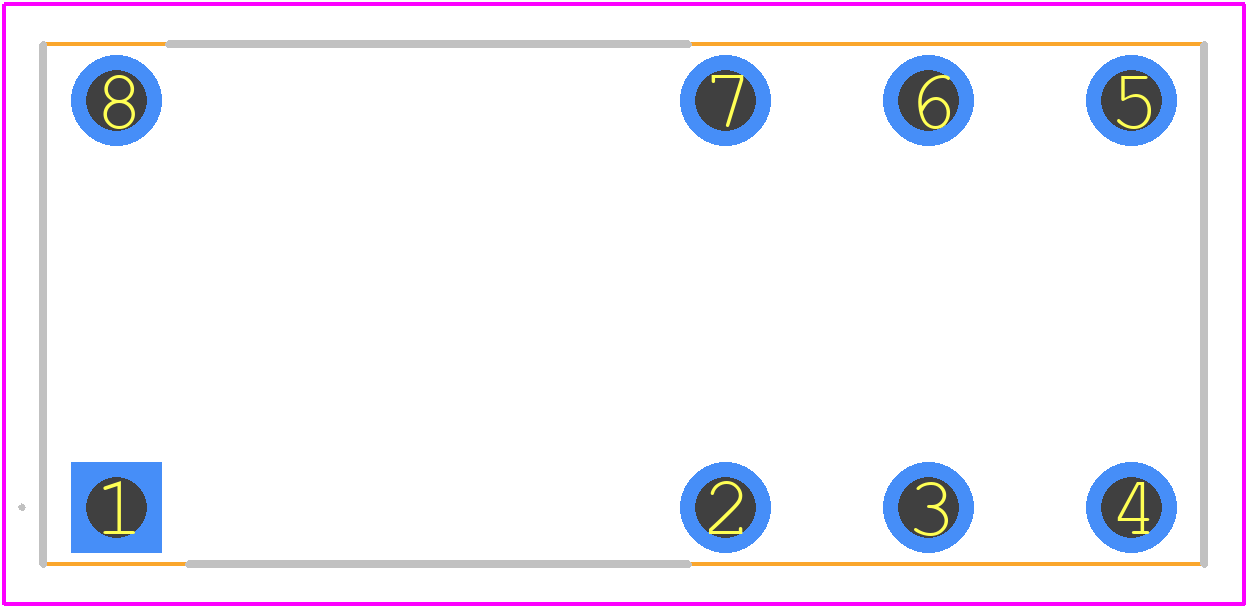

- Footprint Name Other - ADJ56012-1
- Released Date May 1, 2023
- Last Modified Date Jan 16, 2026 11:52 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADJ56012 Details
-
Manufacturer Part Number:
ADJ56012
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
7
-
Body Breadth:
13 mm
-
Body Height:
16.5 mm
-
Body Length or Diameter:
29 mm
ADJ56012 Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADJ56012 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the VCC and GND pins. Additionally, ensure that the thermal pad is connected to a solid ground plane to improve heat dissipation.
-
The thermal pad on the ADJ56012 should be connected to a solid ground plane on the PCB to improve heat dissipation. During assembly, apply a thin layer of thermal interface material (TIM) to the thermal pad, and ensure that the PCB is designed to accommodate the thermal pad's size and shape.
-
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance may degrade at extreme temperatures. For optimal performance, it's recommended to operate the ADJ56012 within a temperature range of -20°C to 85°C.
-
Yes, the ADJ56012 is suitable for high-reliability and automotive applications. However, it's essential to follow Panasonic's guidelines for reliability and quality, and to ensure that the device is used within its specified operating conditions. Additionally, consider using a device with a higher temperature rating and more stringent quality control measures for critical applications.
-
To troubleshoot common issues with the ADJ56012, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is operated within its specified conditions. Use an oscilloscope to monitor the output voltage and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
ADJ56012 Overview
Use the download button to access the ADJ56012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ56,
or try a keyword search, such as Power/Signal Relays
