A good PCB layout for the ADJ66024 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure the ADJ66024 operates within its recommended operating conditions, it's essential to follow the recommended voltage and current ratings, as well as the thermal management guidelines. This includes keeping the junction temperature below 125°C, using a suitable heat sink if necessary, and ensuring the input voltage is within the recommended range of 2.7V to 5.5V.
A typical application circuit for the ADJ66024 involves connecting the input voltage to the VIN pin, the output voltage to the VOUT pin, and the enable pin to a logic signal. Additionally, decoupling capacitors are recommended on the input and output pins to filter out noise and ensure stable operation.
The output voltage of the ADJ66024 can be calculated using the following formula: VOUT = (R1 / R2) * (VIN - VREF) + VREF, where R1 and R2 are the resistors connected to the FB pin, VIN is the input voltage, and VREF is the internal reference voltage (typically 0.8V).
The maximum output current capability of the ADJ66024 is 2A. However, it's essential to ensure the device is operated within its recommended operating conditions and thermal management guidelines to avoid overheating and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ66024 Overview

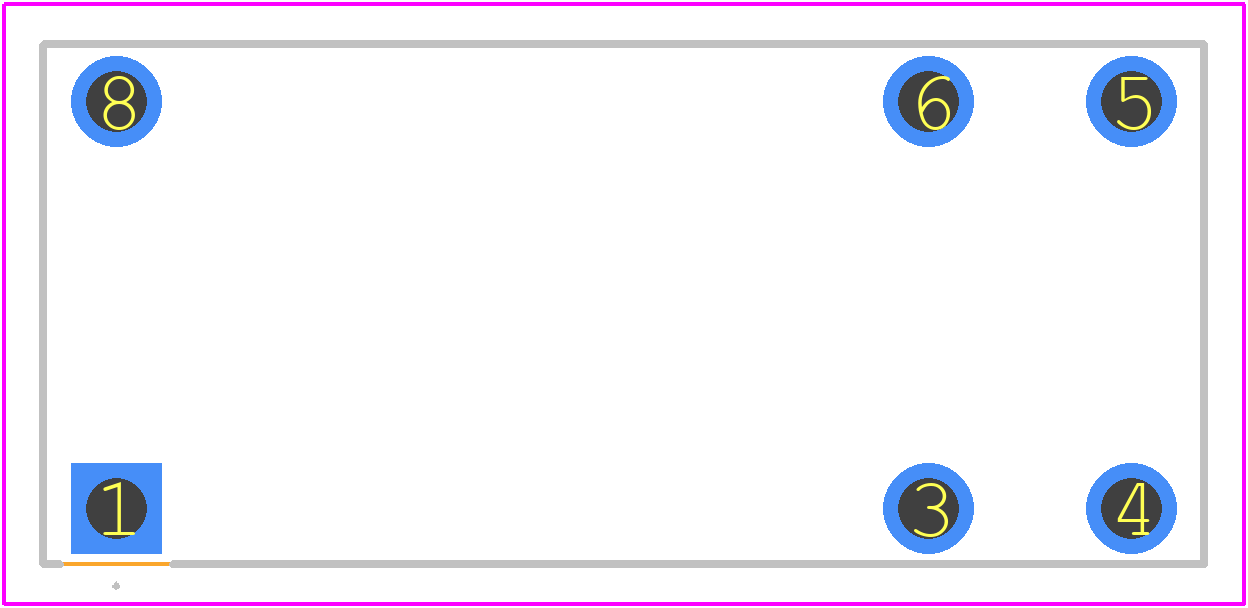

Use the download button to access the ADJ66024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ66,
or try a keyword search, such as Power/Signal Relays
