ADL5205ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - ADL5205ACPZ-R7 - DIFF AMP, DUAL, 1.7GHZ, 5V/NS, LFCSP-40

Download ADL5205ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

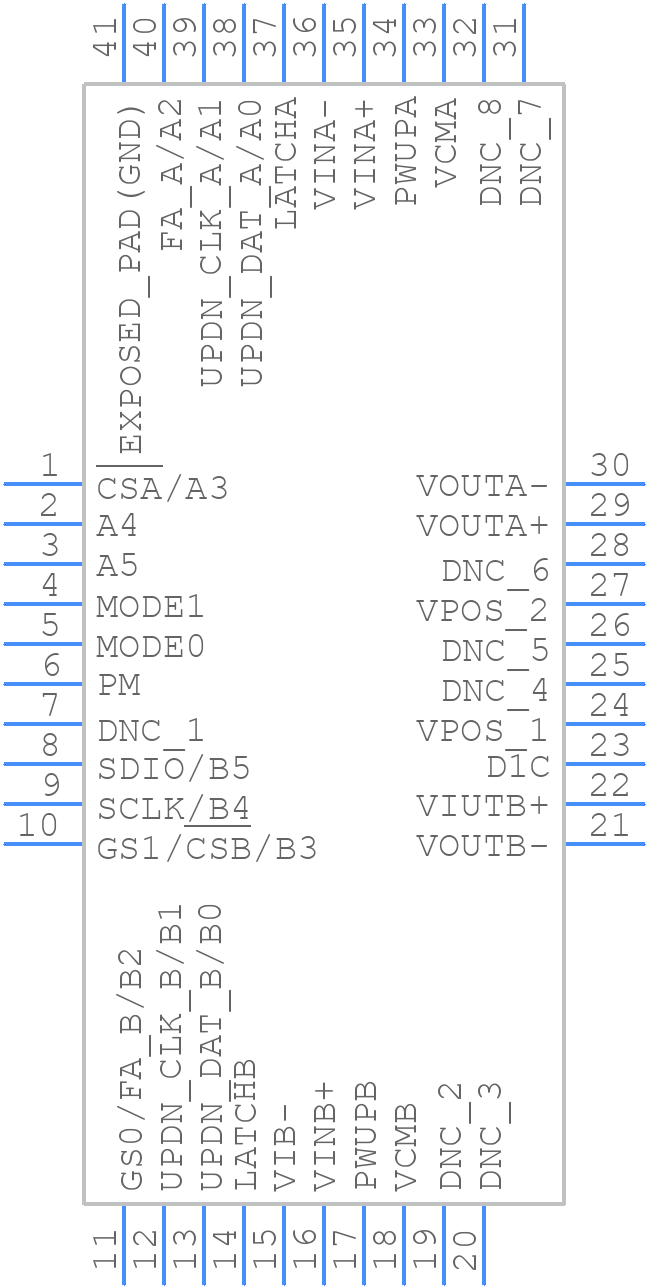

ADL5205ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5205ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-16 (LFCSP)
click to zoom
3D Models
ADL5205ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-16 (LFCSP)
click to zoom

ADL5205ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5205ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    IT ALSO OPERATES AT 5 V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADL5205ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • The ADL5205ACPZ-R7 requires a single 5V supply. Ensure the input voltage is within the recommended range (4.5V to 5.5V) and the output is properly terminated with a 50Ω load.
  • The ADL5205ACPZ-R7 is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, so ensure proper thermal management and heat sinking if necessary.
  • The ADL5205ACPZ-R7 is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. Consider using a radiation-hardened or military-grade equivalent device for such applications.
  • Check the PCB layout, power supply, and input/output terminations for any issues. Ensure the device is properly biased and the input signal is within the recommended range. Consult the datasheet and application notes for troubleshooting guidelines.
