Part Image

ADL5243ACPZ-R7 - Analog Devices

Description: 100 MHz TO 4000 MHz RF/IF Digitally Controlled VGA

Download ADL5243ACPZ-R7 Model

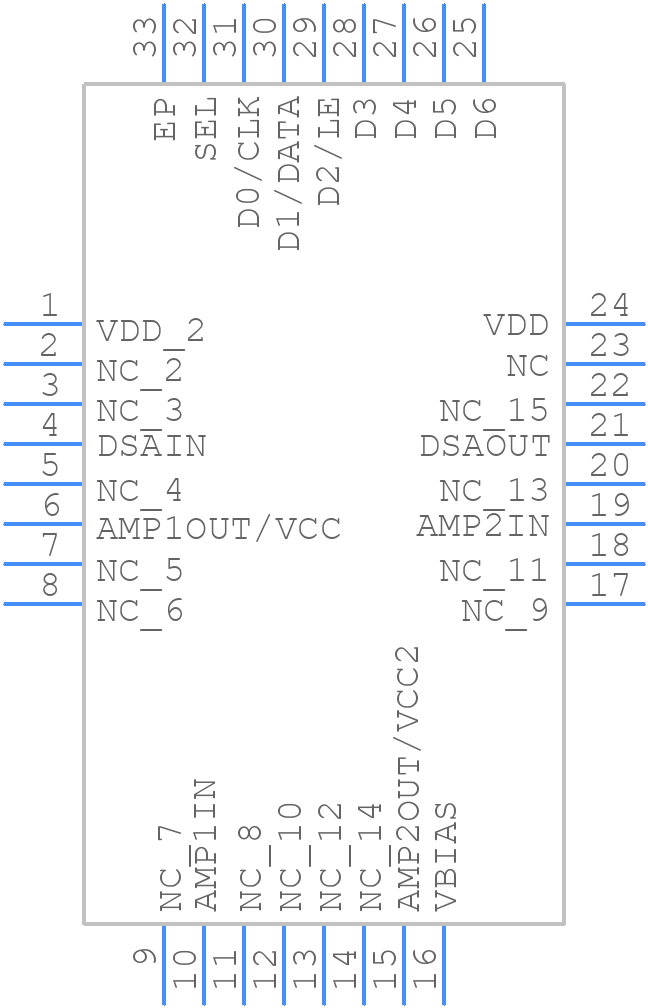

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5243ACPZ-R7 - Analog Devices PCB footprint - Other - Other - QFN50P500X500X100-33N
click to zoom
3D Models
ADL5243ACPZ-R7 - Analog Devices  - 3D model - Other - QFN50P500X500X100-33N
click to zoom

ADL5243ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5243ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:39.129

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-3

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADL5243ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The ADL5243ACPZ-R7 requires a bias voltage of 3.3V to 5V. Ensure the bias voltage is stable and noise-free. Use a voltage regulator or a low-dropout regulator to generate the bias voltage.
  • The ADL5243ACPZ-R7 can handle input powers up to +20 dBm. However, it's recommended to operate the device at input powers below +15 dBm for optimal performance and to prevent damage.
  • Use the device's internal matching network to optimize the performance for a specific frequency band. The internal matching network can be adjusted by modifying the values of the external components R1, R2, and C1.
  • The recommended operating temperature range for the ADL5243ACPZ-R7 is -40°C to +85°C. However, the device can operate up to +125°C with reduced performance.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADL5243ACPZ-R7 Overview

Use the download button to access the ADL5243ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL52, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
