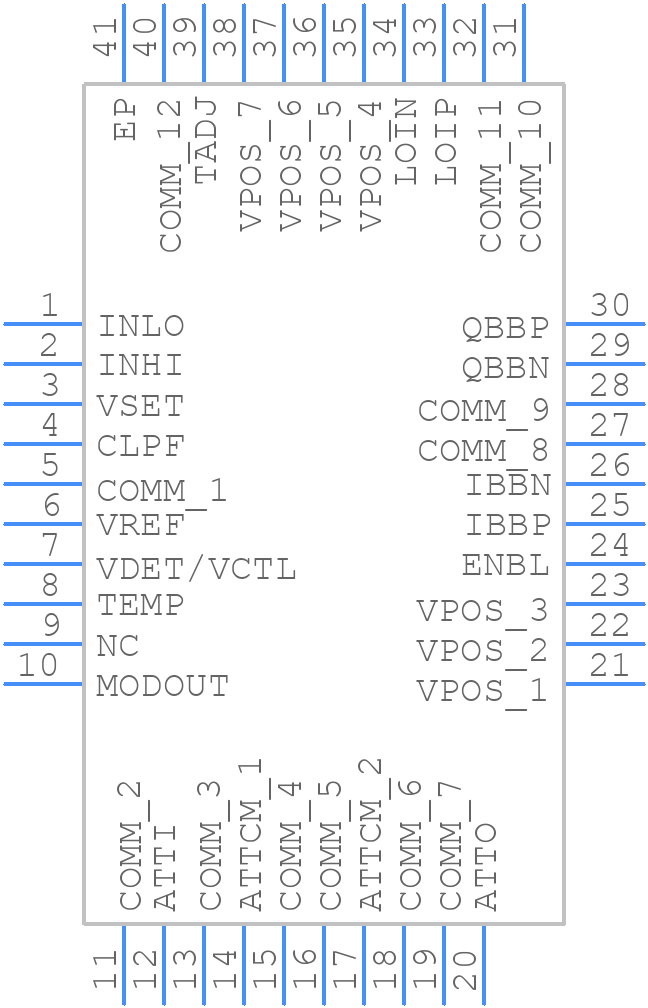

ADL5386ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5386ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-1
click to zoom
3D Models
ADL5386ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-1
click to zoom

ADL5386ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5386ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.245 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

ADL5386ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode filter or a pi-filter to reduce EMI.
  • The ADL5386ACPZ-R7 requires a single 5V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the VCC pin. The input common-mode voltage should be set to mid-supply (2.5V) for optimal performance.
  • The maximum input signal amplitude that the ADL5386ACPZ-R7 can handle is 2.5Vpp differential. Exceeding this limit may result in distortion and reduced performance.
  • The ADL5386ACPZ-R7 has a fixed gain of 26dB. To optimize for a specific frequency range, use external filtering or impedance matching networks to ensure maximum power transfer and minimal signal loss.
  • The typical current consumption of the ADL5386ACPZ-R7 is 140mA. This can vary depending on the input signal amplitude and frequency.
