ADL5390ACPZ-REEL7 - Analog Devices

Description: RF Wireless Misc Vector Multiplier

Download ADL5390ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

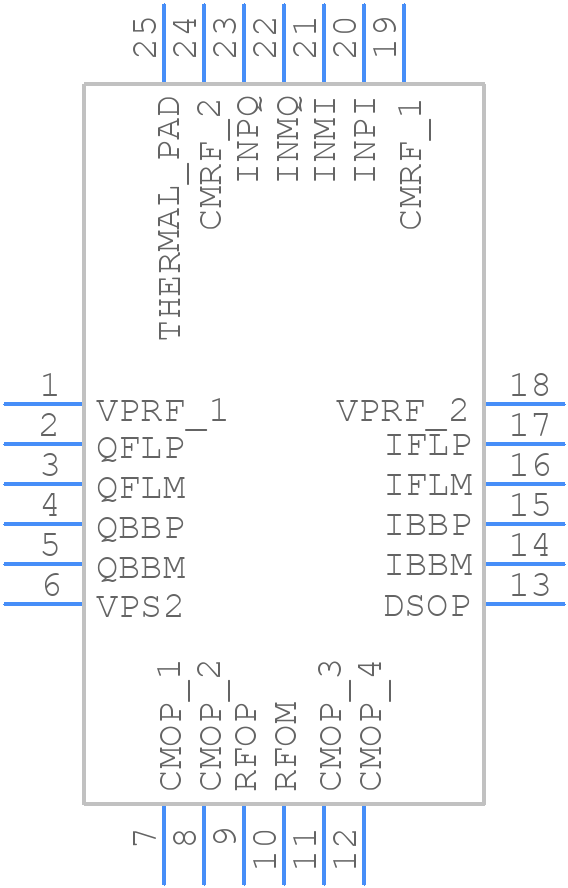

PCB Footprints
ADL5390ACPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-2
click to zoom
3D Models
ADL5390ACPZ-REEL7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-24-2
click to zoom

ADL5390ACPZ-REEL7 Details

  • Manufacturer Part Number:

    ADL5390ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADL5390ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling.
  • Ensure the VPOS and VNEG pins are properly biased to the recommended voltage levels (e.g., VPOS = 5V, VNEG = -5V). Also, ensure the input signal is within the recommended common-mode voltage range.
  • The maximum input signal amplitude is ±2.5V peak-to-peak. Exceeding this limit may result in distortion and reduced linearity.
  • Use proper shielding, grounding, and decoupling techniques. Keep the ADL5390 away from noisy components and use a low-noise power supply. Also, consider using a ferrite bead or a pi-filter to reduce high-frequency noise.
  • Yes, but with some limitations. The ADL5390 can operate from a single supply voltage, but the output voltage swing will be reduced, and the device may not achieve its full performance potential.
