ADL5591ACPZ-R7 - Analog Devices

Description: Modulator / Demodulator EMOD GSM ASIC FOR ERICSSON 1800-1990 MHZ

Download ADL5591ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

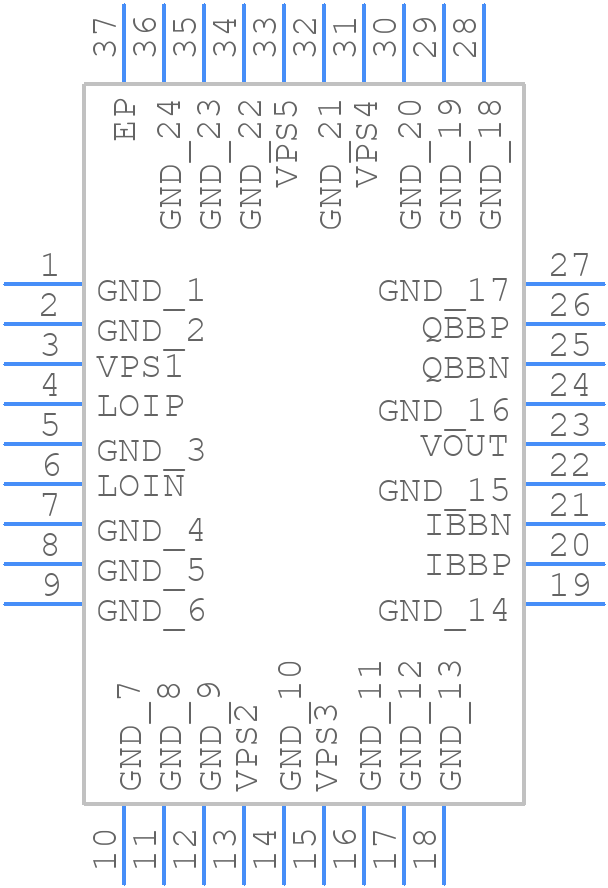

ADL5591ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5591ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-36-4)
click to zoom
3D Models
ADL5591ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-36-4)
click to zoom

ADL5591ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5591ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:39.476

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    6 X 6 MM, MO-220VGGD-1, CP-36-1, LFCSP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    CP-36-4

  • Country Of Origin:

    Philippines

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Modulation Technique:

    QUADRAPHASE

  • Operating Frequency-Max:

    1990 MHz

  • Operating Frequency-Min:

    1805 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

ADL5591ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5591ACPZ-R7 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper biasing, follow the recommended biasing circuit in the datasheet, and make sure the voltage supply is stable and within the recommended range. The ADL5591ACPZ-R7 requires a single 5V supply, and the input bias voltage should be set to around 2.5V. Additionally, ensure that the input signal is properly terminated and matched to the device's input impedance.
  • The ADL5591ACPZ-R7 can handle input powers up to +20 dBm without damage. However, it's essential to ensure that the input power is within the recommended range to maintain optimal performance and linearity. Exceeding the maximum input power can lead to compression, distortion, or even device damage.
  • To troubleshoot common issues with the ADL5591ACPZ-R7, start by verifying the PCB layout and ensuring that it meets the recommended guidelines. Check the power supply and input signal for noise and stability. Use a spectrum analyzer to identify any unwanted signals or oscillations. If issues persist, consult the datasheet and application notes for troubleshooting guides or contact Analog Devices' technical support.
  • The ADL5591ACPZ-R7 is specified to operate from -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the maximum operating temperature should be derated based on the application's specific requirements. Consult the datasheet and reliability reports for more information on temperature limitations and derating guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5591ACPZ-R7 Overview

Use the download button to access the ADL5591ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL55, or try a keyword search, such as RF/Microwave Modulator/Demodulators
