ADL5604ACPZ-R7 footprint, schematic symbol and 3D model by Analog Devices

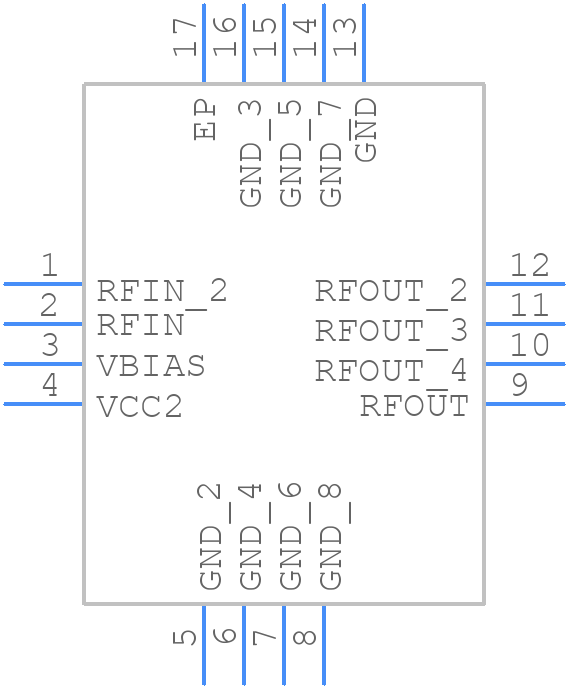

Symbol

click to zoom

PCB Footprints

ADL5604ACPZ-R7 - Analog Devices PCB footprint - Other - Other - QFN65P400X400X85-17N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADL5604ACPZ-R7
Part Number ADL5604ACPZ-R7
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN65P400X400X85-17N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADL5604ACPZ-R7 Details

Manufacturer Part Number:
ADL5604ACPZ-R7
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MO-220-VGGC, LFCSP_VQ, 16 PIN
Pin Count:
16
Manufacturer Package Code:
CP-16-23
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Gain:
13.2 dB
Input Power-Max (CW):
25 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
16
Operating Frequency-Max:
2700 MHz
Operating Frequency-Min:
700 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC16,.16SQ,25
Power Supplies:
5 V
RF/Microwave Device Type:
WIDE BAND MEDIUM POWER
Supply Current-Max:
345 mA
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)

ADL5604ACPZ-R7 Frequently Asked Questions (FAQs)

A good PCB layout for the ADL5604ACPZ-R7 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the power supply decoupling capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing high-frequency signals near the device's sensitive analog inputs.
To ensure proper biasing, make sure to connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 0.1uF capacitors to ground. Also, ensure that the input signals are within the recommended common-mode voltage range, and that the output load is within the specified range to avoid overloading the device.
The maximum power dissipation of the ADL5604ACPZ-R7 is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device. Also, avoid operating the device at maximum power dissipation for extended periods of time.
The ADL5604ACPZ-R7 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature should not exceed 150°C. If you need to operate the device in a high-temperature environment, ensure that you provide adequate heat sinking and follow the recommended thermal management guidelines.
To troubleshoot common issues with the ADL5604ACPZ-R7, start by checking the PCB layout and ensuring that the device is properly biased and decoupled. Check for any signs of oscillation or instability, such as excessive noise or ringing on the output. Also, verify that the input signals are within the recommended range and that the output load is within the specified range. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

System Verified

ADL5604ACPZ-R7 Overview

Use the download button to access the ADL5604ACPZ-R7 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADL56, or try a keyword search, such as RF/Microwave Amplifiers
