ADL5802ACPZ-R7 - Analog Devices

Description: RF Mixer Dual WB Active Mixer in XFCB3 "DRx"

Download ADL5802ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

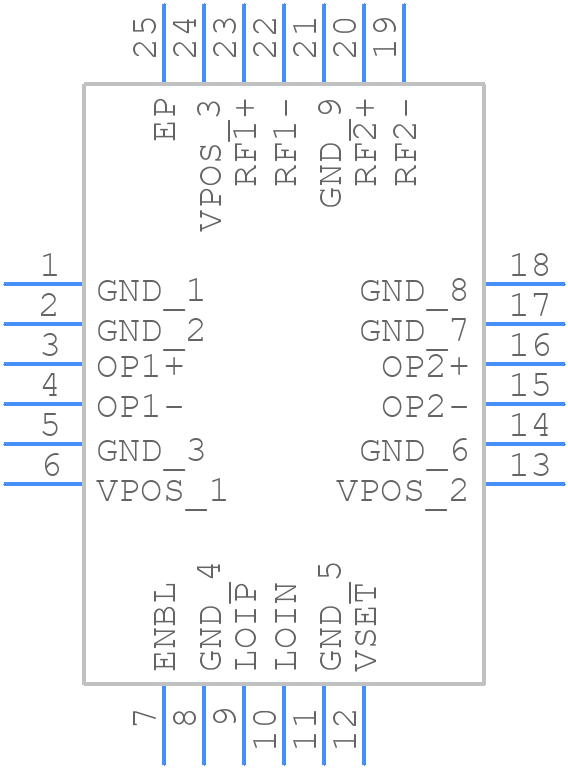

ADL5802ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5802ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom
3D Models
ADL5802ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom

ADL5802ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5802ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Supply Current-Max:

    300 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ADL5802ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • The ADL5802ACPZ-R7 requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The maximum input signal amplitude is 2.5Vpp differential. Exceeding this may cause distortion and affect the device's performance.
  • Use a low-noise power supply, keep the input and output traces short, and use a ground plane to minimize noise coupling. Also, ensure the device is operated within its recommended operating conditions.
  • A 50Ω differential termination is recommended for optimal performance. This can be achieved using a 50Ω resistor in series with a 0.1uF capacitor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5802ACPZ-R7 Overview

Use the download button to access the ADL5802ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
