ADL7078ACPZN-R7 - Analog Devices

Description: High Survivability, Low Noise Amplifier, 1 GHz to 20 GHz

Download ADL7078ACPZN-R7 Model

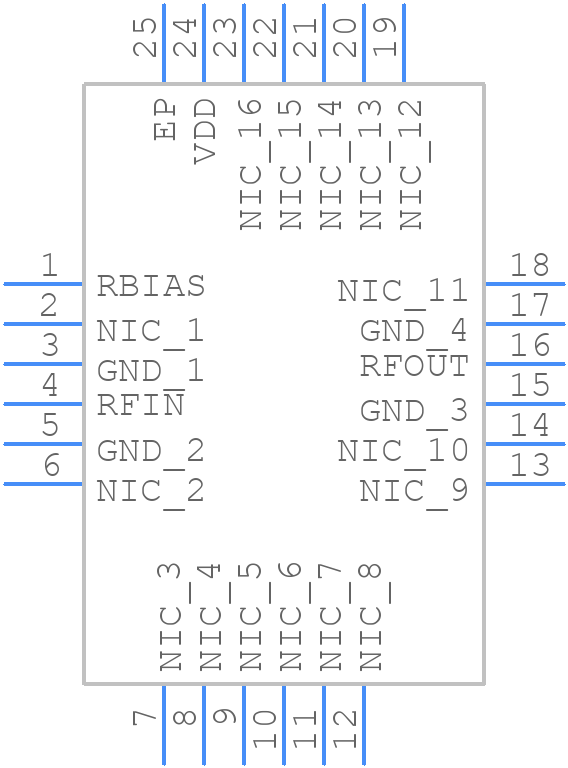

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL7078ACPZN-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-15_
click to zoom
3D Models
ADL7078ACPZN-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-24-15_
click to zoom

ADL7078ACPZN-R7 Details

  • Manufacturer Part Number:

    ADL7078ACPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    11 dB

  • Input Power-Max (CW):

    32 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.31

ADL7078ACPZN-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL7078ACPZN-R7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VPOS pin to a stable voltage source (e.g., 3.3V or 5V) and the VNEG pin to a stable negative voltage source (e.g., -3.3V or -5V). The voltage difference between VPOS and VNEG should be within the recommended range of 6V to 12V.
  • The maximum power dissipation of the ADL7078ACPZN-R7 is 1.4W. To ensure reliable operation, the device should be operated within the recommended operating temperature range of -40°C to 125°C.
  • Yes, the ADL7078ACPZN-R7 is designed to operate in high-temperature environments. However, the device's performance and reliability may degrade at temperatures above 125°C. It's essential to follow the recommended operating temperature range and ensure proper thermal management.
  • To troubleshoot common issues, check the PCB layout for any signs of noise or interference, ensure proper biasing and power supply decoupling, and verify that the input and output signals are within the recommended ranges. Also, consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
