ADL8100ACPZN-R7 - Analog Devices

Description: ► Low noise figure: 2.5 dB typical at 6 GHz to 14 GHz ► Single positive supply (self biased) ► High gain: 20 dB typical from 0.01 GHz to 6 GHz ► High OIP3: 38 dBm typical from 0.01 GHz to 6 GHz ► RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP

Download ADL8100ACPZN-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

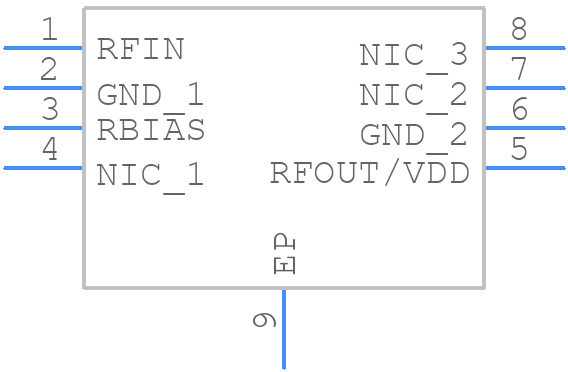

ADL8100ACPZN-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL8100ACPZN-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-30
click to zoom
3D Models
ADL8100ACPZN-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-30
click to zoom

ADL8100ACPZN-R7 Details

  • Manufacturer Part Number:

    ADL8100ACPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Pin Count:

    6

  • Manufacturer Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Date Of Intro:

    2023-07-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15.5 dB

  • Input Power-Max (CW):

    23 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.35

ADL8100ACPZN-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL8100ACPZN-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, make sure to connect the VPOS pin to a stable voltage source between 4.5V and 5.5V, and the VNEG pin to a stable voltage source between -4.5V and -5.5V. Also, ensure that the input common-mode voltage is within the recommended range of 0.5V to 4.5V.
  • The maximum input signal amplitude that the ADL8100ACPZN-R7 can handle is ±10V peak-to-peak. Exceeding this limit may result in distortion, clipping, or damage to the device.
  • To reduce noise and EMI, use a shielded enclosure, keep the input and output traces short and away from each other, use decoupling capacitors, and consider adding a common-mode choke or ferrite bead to the input lines. Also, ensure that the power supply is well-regulated and low-noise.
  • The typical settling time of the ADL8100ACPZN-R7 is around 100ns to 200ns, depending on the input signal frequency and amplitude. This is the time it takes for the output to settle to within 1% of its final value after a step change in the input signal.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL8100ACPZN-R7 Overview

Use the download button to access the ADL8100ACPZN-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL81, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
