ADL8104ACPZN - Analog Devices

Description: Single positive supply (self biased) High OIP2: 52 dBm typical at 0.6 GHz to 7.5 GHz High gain: 15 dB typical at 0.6 GHz to 6 GHz High OIP3: 32 dBm typical Low noise figure: 3.5 dB typical at 0.4 GHz to 6 GHz RoHS-compliant, 3 mm × 3 mm, 16-lead LFCSP

Download ADL8104ACPZN Model
Schematic

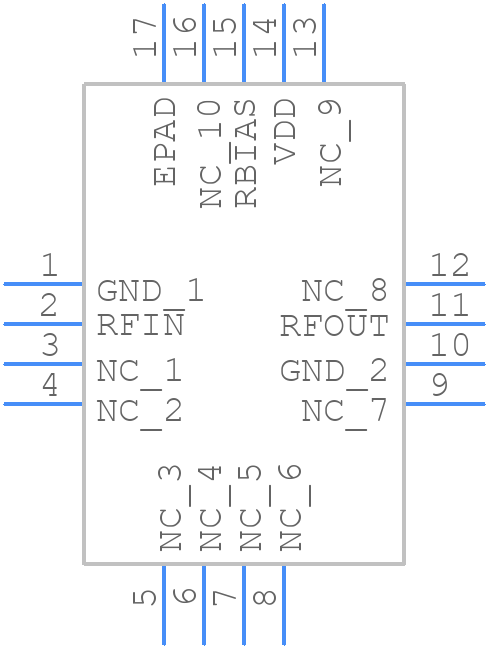

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL8104ACPZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-35)
click to zoom
3D Models
ADL8104ACPZN - Analog Devices  - 3D model - Quad Flat No-Lead - (CP-16-35)
click to zoom

ADL8104ACPZN Details

  • Manufacturer Part Number:

    ADL8104ACPZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-35

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-09-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10 dB

  • Input Power-Max (CW):

    25 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    7500 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.58

ADL8104ACPZN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure the input voltage is within the recommended range (2.7V to 5.5V) and the output voltage is set to the desired level using the FB pin. Also, ensure the EN pin is properly biased to enable or disable the device.
  • The ADL8104ACPZN can deliver up to 2A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions.
  • Use external voltage protection devices such as TVS diodes or voltage regulators to protect the ADL8104ACPZN from overvoltage conditions. For undervoltage protection, use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls below a certain threshold.
  • The ADL8104ACPZN has a thermal derating of 26.3°C/W, which means the junction temperature will increase by 26.3°C for every watt of power dissipation. Ensure proper thermal design and heat sinking to maintain a safe junction temperature.
