ADL8105ACPZN-R7 - Analog Devices

Description: ► Single positive supply (self biased) ► Gain: 27 dB typical at 12 GHz to 17 GHz ► OP1dB: 18 dB typical at 12 GHz to 17 GHz ► OIP3: 30.5 dBm typical at 12 to GHz to 17 GHz ► Noise figure: 1.8 dB typical at 12 GHz to 17 GHz ► RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP

Download ADL8105ACPZN-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

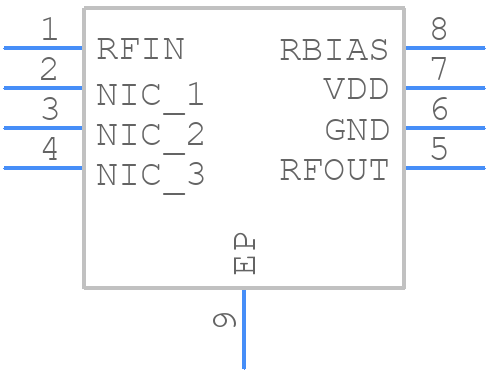

ADL8105ACPZN-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL8105ACPZN-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-30
click to zoom
3D Models
ADL8105ACPZN-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-30
click to zoom

ADL8105ACPZN-R7 Details

  • Manufacturer Part Number:

    ADL8105ACPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    24.5 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    5 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.35

ADL8105ACPZN-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL8105ACPZN-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, make sure to connect the VPOS pin to a stable voltage source between 4.5V and 5.5V, and the VNEG pin to a stable voltage source between -4.5V and -5.5V. Also, ensure that the input common-mode voltage is within the recommended range of 0.5V to 4.5V.
  • The maximum input signal amplitude that the ADL8105ACPZN-R7 can handle is ±10V peak-to-peak. Exceeding this limit may result in distortion, clipping, or damage to the device.
  • To reduce noise and EMI, use a low-noise power supply, add decoupling capacitors close to the device, and use a shielded enclosure. Also, keep the input and output traces away from each other and from other noisy signals, and use a common-mode choke or ferrite bead on the input lines.
  • The typical settling time of the ADL8105ACPZN-R7 is around 10µs to 1% of the final value, but this can vary depending on the input signal frequency, amplitude, and the output load. Consult the datasheet for more information on settling time vs. frequency and amplitude.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL8105ACPZN-R7 Overview

Use the download button to access the ADL8105ACPZN-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL81, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
