ADL8105ACPZN - Analog Devices

Description: GaAs, pHEMT, MMIC, Low Noise Amplifier, 5 GHz to 20 GHz

Download ADL8105ACPZN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

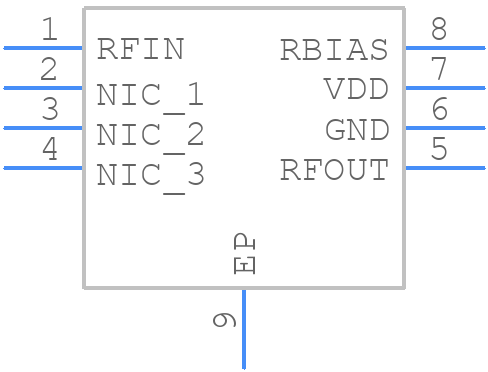

ADL8105ACPZN - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL8105ACPZN - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-30
click to zoom
3D Models
ADL8105ACPZN - Analog Devices - 3D model - Small Outline No-lead - CP-8-30
click to zoom

ADL8105ACPZN Details

  • Manufacturer Part Number:

    ADL8105ACPZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    24.5 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    5 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.35

ADL8105ACPZN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure the input voltage is within the recommended range (2.7V to 5.5V) and the output voltage is set to the desired level using the FB pin. Also, ensure the EN pin is properly biased to enable or disable the device.
  • The maximum input voltage is 5.5V, but it's recommended to operate within the recommended input voltage range (2.7V to 5.5V) for optimal performance and to prevent damage to the device.
  • The output voltage can be calculated using the formula: VOUT = VFB x (1 + R1/R2), where VFB is the feedback voltage (typically 0.8V), R1 is the feedback resistor, and R2 is the divider resistor.
  • The thermal shutdown temperature is typically around 150°C, but it's recommended to operate the device within the recommended operating temperature range (-40°C to 125°C) to ensure optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL8105ACPZN Overview

Use the download button to access the ADL8105ACPZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL81, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
