ADL8107ACPZN-R7 - Analog Devices

Description: GaAs, pHEMT, MMIC, Low Noise Amplifier, 6 GHz to 18 GHz

Download ADL8107ACPZN-R7 Model

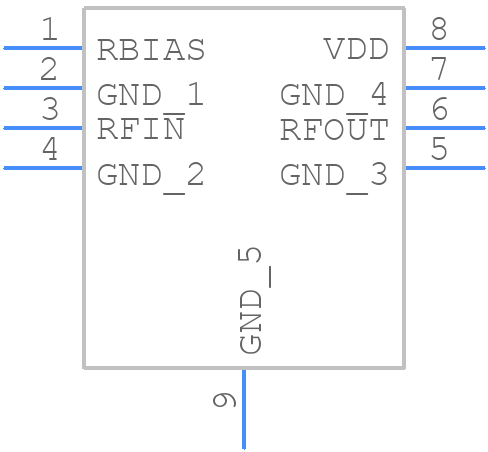

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL8107ACPZN-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP] 2 mm × 2 mm Body and 0.85 mm Package Height (CP-8-30)
click to zoom
3D Models
ADL8107ACPZN-R7 - Analog Devices  - 3D model - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP] 2 mm × 2 mm Body and 0.85 mm Package Height (CP-8-30)
click to zoom

ADL8107ACPZN-R7 Details

  • Manufacturer Part Number:

    ADL8107ACPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-30

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18 dB

  • Input Power-Max (CW):

    22 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.54

ADL8107ACPZN-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the input power.
  • The ADL8107ACPZN-R7 requires a bias voltage of 3.3V to 5V. Ensure the bias voltage is stable and noise-free. Use a low-dropout regulator or a voltage reference to generate the bias voltage.
  • The ADL8107ACPZN-R7 can handle input voltages up to 12V, but the recommended maximum input voltage is 10V to ensure optimal performance and reliability.
  • Use a voltage clamp or a transient voltage suppressor (TVS) to protect the ADL8107ACPZN-R7 from overvoltage conditions. Add a current-limiting resistor or a fuse to protect against overcurrent conditions.
  • The ADL8107ACPZN-R7 has a thermal pad on the bottom of the package. Use a thermal interface material (TIM) to improve heat transfer between the device and the PCB. Ensure good airflow around the device to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL8107ACPZN-R7 Overview

Use the download button to access the ADL8107ACPZN-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL81, or try a keyword search, such as RF/Microwave Amplifiers
