ADL8142ACPZN - Analog Devices

Description: RF Amplifier 23 31 GHz GaAs MMIC LNA

Download ADL8142ACPZN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

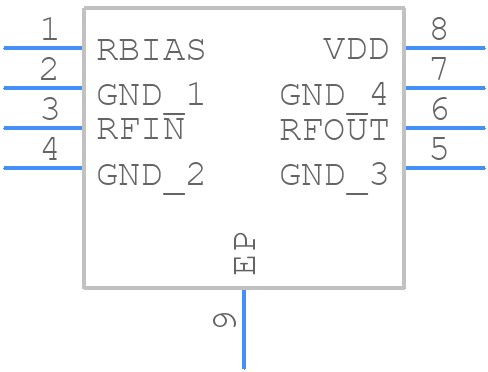

ADL8142ACPZN - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL8142ACPZN - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-30
click to zoom
3D Models
ADL8142ACPZN - Analog Devices - 3D model - Small Outline No-lead - CP-8-30
click to zoom

ADL8142ACPZN Details

  • Manufacturer Part Number:

    ADL8142ACPZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    24.5 dB

  • Input Power-Max (CW):

    20 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    31000 MHz

  • Operating Frequency-Min:

    23000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    2 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.38

ADL8142ACPZN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure the VCC pin is connected to a stable 5V power supply, and the VEE pin is connected to a stable -5V power supply. Also, ensure the input voltage is within the recommended range of 1.5V to 3.5V.
  • The maximum input signal amplitude is 2Vpp differential. Exceeding this may result in distortion and reduced performance.
  • Use a shielded enclosure, keep the input and output cables short and away from each other, and use a common-mode choke or ferrite bead on the input lines to reduce EMI.
  • The recommended operating temperature range is -40°C to 85°C. Operating outside this range may affect performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL8142ACPZN Overview

Use the download button to access the ADL8142ACPZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL81, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
