ADM101EARM-REEL - Analog Devices

Description: RS-232 Interface IC SINGLE CHANNEL, 5V RS-232 I.C.

Download ADM101EARM-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

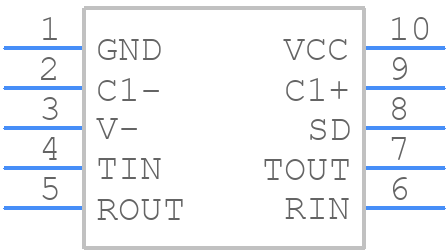

ADM101EARM-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM101EARM-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADM101EARM-REEL
click to zoom
3D Models
ADM101EARM-REEL - Analog Devices - 3D model - Small Outline Packages - ADM101EARM-REEL
click to zoom

ADM101EARM-REEL Details

  • Manufacturer Part Number:

    ADM101EARM-REEL

  • Source Url Status Check Date:

    2013-05-01 14:56:39.529

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    6.5 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    5000 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADM101EARM-REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors.
  • Proper power supply decoupling is crucial for the ADM101EARM-REEL. Use a low-ESR capacitor (e.g., 0.1 μF) between the VCC and GND pins, and a larger capacitor (e.g., 10 μF) between the power supply and GND. Also, ensure the power supply is clean and regulated.
  • The ADM101EARM-REEL is rated for operation from -40°C to +125°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and accuracy.
  • Start by verifying the power supply and decoupling, then check the input and output connections. Use an oscilloscope to monitor the output voltage and look for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guides and common pitfalls.
  • The ADM101EARM-REEL is a high-reliability device, but it's essential to follow Analog Devices' guidelines for high-reliability applications, including using the device within its recommended operating conditions, following proper PCB design and layout, and implementing adequate fault detection and protection mechanisms.
