ADM101EARMZ - Analog Devices

Description: Tiny RS-232 Transceiver

Download ADM101EARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

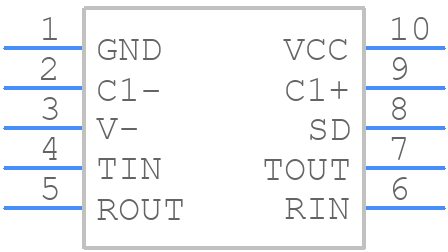

Symbol
ADM101EARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM101EARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-10)
click to zoom
3D Models
ADM101EARMZ - Analog Devices - 3D model - Small Outline Packages - (RM-10)
click to zoom

ADM101EARMZ Details

  • Manufacturer Part Number:

    ADM101EARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    6.5 V

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    5000 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADM101EARMZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the power supply traces away from the analog signals.
  • The ADM101EARMZ has an internal calibration circuit that sets the voltage reference. No external calibration is required. However, it's essential to follow the recommended PCB layout and ensure that the device is properly powered and grounded to ensure accurate voltage monitoring.
  • The maximum cable length for the SMBus interface is 10 meters. Use a twisted-pair cable with a characteristic impedance of 100-120 ohms and a shielded cable to minimize electromagnetic interference (EMI).
  • The ADM101EARMZ has an internal thermal diode that monitors the device temperature. The thermal monitoring thresholds are 125°C (typical) and 150°C (maximum). Use the SMBus interface to read the temperature data and implement a thermal management strategy to prevent overheating.
  • The recommended power-up sequence is to apply the analog power supply (VCC) before the digital power supply (VDD). Ensure that the power supplies are well-regulated and have a low noise floor to prevent errors in voltage monitoring. A 3.3V or 5V power supply is recommended for VDD, and a 3.3V power supply is recommended for VCC.
