ADM1024ARUZ-REEL - onsemi

Description: Up to 9 Measurement Channels; Inputs Programmable-to-Measure Analog Voltage, Fan Speed, or External Temperature; External Temperature Measurement with Remote Diode (2 Channels); On-Chip Temperature Sensor; 5 Digital Inputs for VID Bits; LDCM Support; System Management Bus (SMBus); Chassis Intrusion Detect; Interrupt and Over-Temperature Outputs; Programmable RESET Input Pin

Download ADM1024ARUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

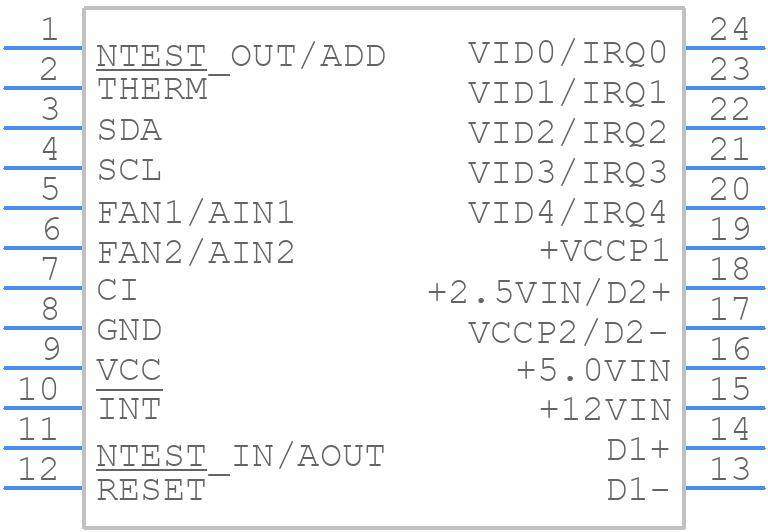

ADM1024ARUZ-REEL - onsemi - PCB symbol
click to zoom
PCB Footprints
ADM1024ARUZ-REEL - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP24 DT CASE 948H ISSUE B
click to zoom
3D Models
ADM1024ARUZ-REEL - onsemi - 3D model - Small Outline Packages - TSSOP24 DT CASE 948H ISSUE B
click to zoom

ADM1024ARUZ-REEL Details

  • Manufacturer Part Number:

    ADM1024ARUZ-REEL

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP24 7.8x4.4, 0.65P

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    948H-01

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    9

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADM1024ARUZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure accurate temperature readings, it's essential to calibrate the device, use a high-precision voltage reference, and minimize noise in the system. Additionally, ensure that the device is properly soldered and that the thermal interface material is applied correctly.
  • The maximum allowed voltage on the VDD pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, the ADM1024ARUZ-REEL is rated for operation up to 125°C. However, it's essential to ensure that the device is properly heat-sinked and that the thermal interface material is suitable for high-temperature operation.
  • The ADM1024ARUZ-REEL can be interfaced with a microcontroller using a standard I2C bus. Ensure that the microcontroller's I2C bus is compatible with the ADM1024ARUZ-REEL's I2C interface, and that the correct pull-up resistors are used.
