ADM1060ARUZ - Analog Devices

Description: Supervisor Programmable 7 Channel 28-TSSOP

Download ADM1060ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

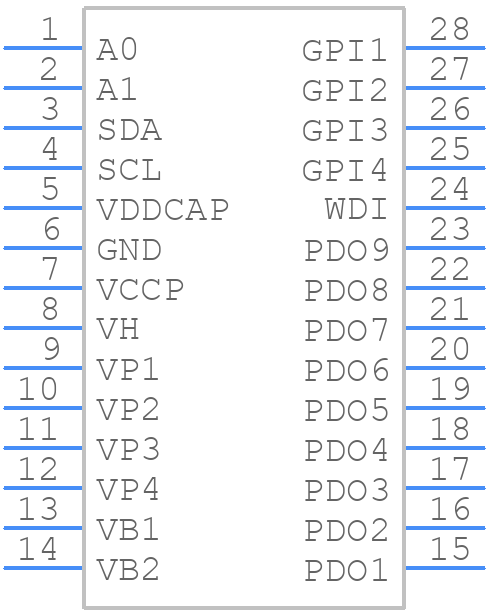

ADM1060ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1060ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28
click to zoom
3D Models
ADM1060ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-28
click to zoom

ADM1060ARUZ Details

  • Manufacturer Part Number:

    ADM1060ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADM1060ARUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1060ARUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper configuration, carefully review the datasheet and application notes, and consult with Analog Devices' support resources if needed. Also, consider using the ADM1060ARUZ evaluation board to test and validate your design before implementing it in your final product.
  • The ADM1060ARUZ has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow, use a heat sink if necessary, and follow proper PCB design and layout guidelines. Also, consider using thermal simulation tools to model and optimize your design.
  • To troubleshoot issues with the ADM1060ARUZ, start by reviewing the datasheet and application notes, and checking for proper power supply, clocking, and configuration. Use oscilloscopes and logic analyzers to debug the device, and consult with Analog Devices' support resources if needed.
  • Yes, the ADM1060ARUZ is susceptible to EMI/EMC issues. To ensure compliance, follow proper PCB design and layout guidelines, use shielding and filtering as needed, and consider using EMI/EMC simulation tools to model and optimize your design.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADM1060ARUZ Overview

Use the download button to access the ADM1060ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM10, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
