ADM1062ACPZ - Analog Devices

Description: Super Sequencer® with Margining Control and Temperature Monitoring

Download ADM1062ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

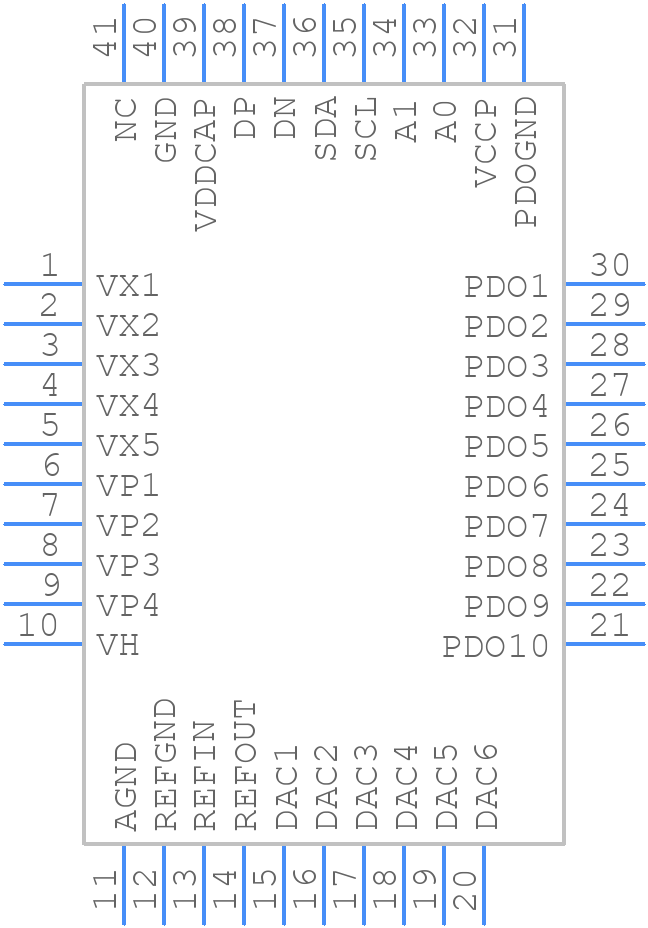

ADM1062ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1062ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-9
click to zoom
3D Models
ADM1062ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-9
click to zoom

ADM1062ACPZ Details

  • Manufacturer Part Number:

    ADM1062ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADM1062ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1062ACPZ involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM1062ACPZ requires a single 3.3V power supply. It's recommended to power the device using a low-noise, low-dropout regulator. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply is stable before enabling the device.
  • The recommended clock frequency for the ADM1062ACPZ is 25 MHz, but it can operate up to 50 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. A clock signal with excessive jitter or noise can affect the device's performance and accuracy.
  • The ADM1062ACPZ has several configuration options, including gain settings, filter settings, and output mode settings. The optimal configuration depends on the specific application requirements. It's recommended to consult the datasheet and application notes for guidance on configuring the device for optimal performance.
  • The ADM1062ACPZ has a maximum junction temperature of 150°C. To ensure the device operates within its recommended temperature range, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and ensure good airflow around the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1062ACPZ Overview

Use the download button to access the ADM1062ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM10, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
